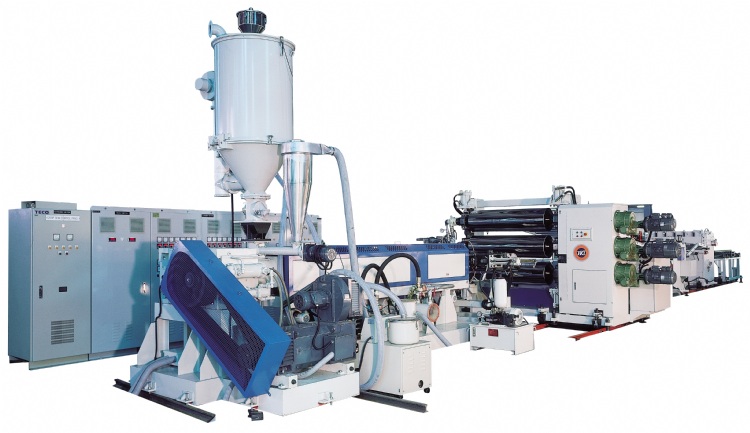

ABS Sheet Making Machine
Model: ABS / HIPS Sheet
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Extruders
Characteristics
FKI is the manufacturer of ABS / HIPS Sheet Making Machine.
ABS / HIPS Sheet Making Machine is for thermo forming purposes, inner layers for refrigerators and bathrooms closets. The sheet thickness is from 0.2mm to 6.0mm.
Specifications
- Extruder: Ø75mm, Ø100mm, Ø125mm, Ø150mm, screw L/D=32:1
- Main drive: 55 ~ 60kw, 75 ~ 93kw, 112 ~ 150kw, 150 ~ 187kw
- Extrusion output: 130 ~ 150 kg/hr, 200 ~ 250 kg/hr, 280 ~ 350 kg/hr, 450 ~ 550 kg/hr
- Lip width: 1,000mm, 1,200mm, 1,400mm, 1,800mm, 2,200mm
- Product width: 800mm, 1,000mm, 1,200mm, 1,600mm, 2,000mm
- Product thickness: 0.2mm ~ 6.0mm
- Roller width: 1,100mm, 1,300mm, 1,500mm, 1,900mm, 2,300mm
- Roller diameter: 350mm, 400mm
- Line speed, 0.5 ~ 12 M/min
