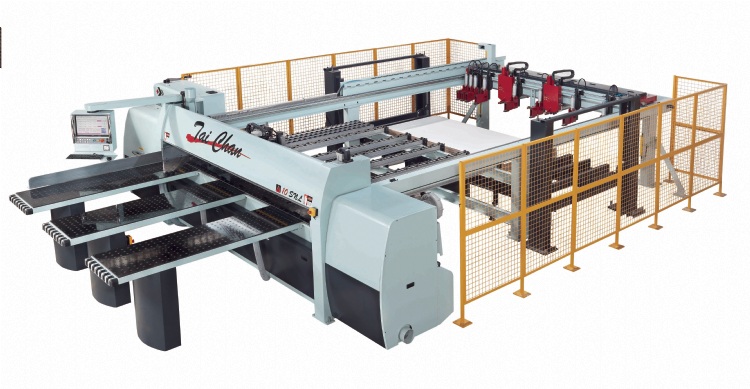

Fully automatic rear loading high speed computer panel saw / beam saw
Model: TPS - SNL
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / Cutting Machine for Marble & Granite
Characteristics
TPS-SNL series
The SNL series fully automatic heavy duty high speed rear loading computer panel saw cutting reach to 120mm height stack panels with automatically sawblade raise up height when met panel stack height, saw carriage travels on single rail combined with rack and pinion match 1KW AC servo motor reach to 100M/min high speed heavy duty cutting, scoring sawblade left & right, up & down automatically adjust through motors control from console, automatic detective double side aligners when met panel width to enhance panel square cutting, magnetic scale combined with powerful 2KW AV servo motor and reducer to ensure panel feeding cutting accuracy, floating grippers to prevent panel surface scratching, lifting table based with quadruple column level, features 5HP hydraulic motor with 6 tons loading capacity and horizontal rollers(optional) left and right automatic moving through motor control, PC operating software including optimizer function to make easy and use friendly, fully automatic functions suite for various customers to match with TiTANK machines. Welcome various of different materials business to require us and designs right machine for you.
Specifications
Model |
TPS-10SNL |
|||||
Capacity |
Cutting length |
3200 mm |
||||
Cutting width |
3200 mm |
|||||
Max. cutting height |
100 mm(Max. Ø120mm) |
|||||
Max. gripper opening |
130 mm |
|||||
Max. saw blade projection |
125 mm |
|||||
Main saw blade |
Main saw blade motor |
20HP (14.7KW) |
||||
Main saw blade diameter |
Ø405mm (Max. Ø455mm) |
|||||
Spindle diameter |
Ø60mm |
|||||
Spindle speed |
3910 R.P.M. |
|||||
Scoring saw blade |
Scoring saw blade motor |
3HP (2.2KW) |
||||
Saw blade diameter |
Ø180mm |
|||||
Spindle diameter |
Ø45mm |
|||||
Spindle speed |
5100 R.P.M. |
|||||
Saw carriage |
Drive motor |
1KW (AC servo motor) |
||||
Cutting speed |
Max. 100 M/min |
|||||
Return speed |
Max. 120 M/min |
|||||
Pusher unit |
Drive motor |
2KW (AC servo motor) |
||||
Pulling speed |
5~80 M/min |
|||||
Pushing speed |
5~80 M/min |
|||||
Lifting table |
Hydraulic motor |
5HP(3.7KW) |
||||
Max. loading capacity |
6 tons (6000KG) |
|||||
Others |
High pressure blower motor (Floating tables) |
5HP (3.7KW) |
||||
Side aligner motor |
0.09KW |
|||||
Working air pressure |
6~7 kg/cm2 |
|||||
Work tables height from floor |
1020mm |
|||||
Floating gripper |
7 units |
|||||
Floating tables |
3 units |
|||||
Voltage |
220V |
380V |
415V |
440V |
575V |
|
Hz |
50HZ / 60HZ |
|||||
New weight |
|
|||||
Gross weight |
|
All specifications, dimensions and design characteristics are subject to change without notice.
