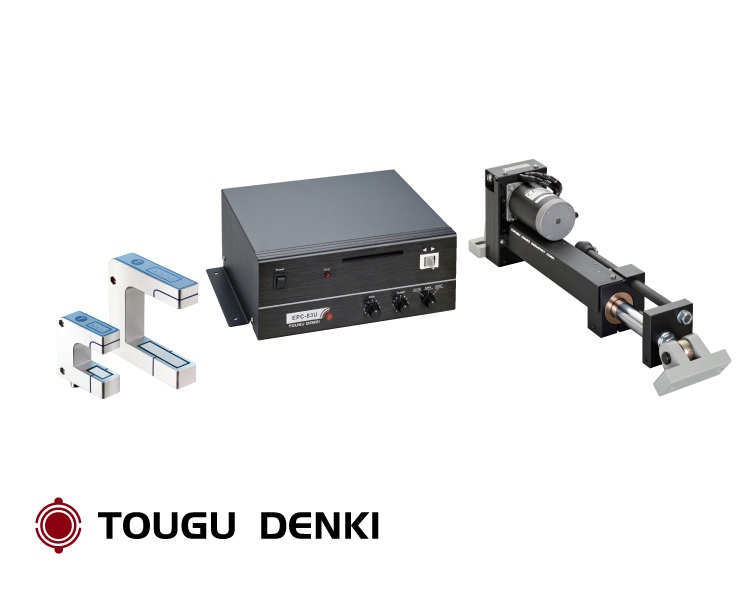

TOUGU DENKI Ultrasonic Web Guiding System (Ultrasonic EPC)



Model: EPC-83U

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems



Online Inquiry





Characteristics



1. Germany Ultrasonic web guiding sensor, resolution 0.025mm, accuracy 0.1mm, protect class IP65.

2. Suitable for clear film, opaque film, light-sensitive materials, paper, foil…etc, and high dust environments.

3. Brushless Electrical Actuator, thrust 250kgf, load 2.5 tons(COF=0.1), max line speed 250m/min.

4. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.

5. Made in Taiwan. Internal web guiding system has contactless semiconductor control that provides reliability and durability.
