Surface Sander
Model: MFA Impression
Category: Woodworking Machinery Industry / Sanding & Polishing Machinery / Automatic Wide Belt Sander
Characteristics

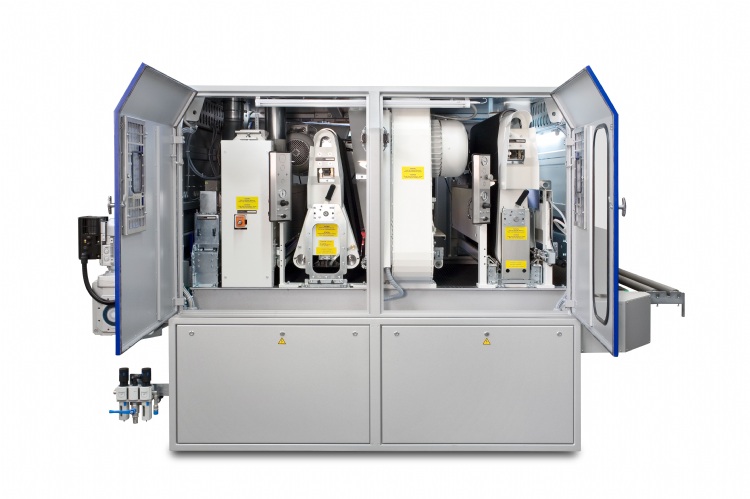

Heesemann MFA Impression
Proven and tested industrial machine technology for trade, interior fitting and industry in a
compact design at an attractive price.
Modular sanding sets – a compact, rigidly structured machine design can take up to 4 longitudinal, cross and calibration units, as well as additional brush units.
MFA Impression thus provides a machine solution for every conceivable
application.
The result is a perfect sanding result. As with industrial machinery, you are free to choose the belt access and operator side.
Specifications
The CSD® magnetic pressure beam system
The precise control of the sanding pressure is decisive for a high-grade, uniform surface sanding quality. The computer controlled selective pressure regulation system of the CSD® magnetic pressure beam system can smoothly adjust the sanding pressure to every element in the pressure beam within milliseconds.
A highly sensitive sensing system at the infeed supplies the data for exact calculation of pressure.
The elastic pressure beam compensates for workpiece thickness differences of 2 mm and more, whether the variation occurs within a single workpiece or from one workpiece to another.
Contamination of the system, such as those that may occur with pneumatic elements, is impossible.
EnergyManagement-System EMS
The Impression comes with the EMS system off the shelf. Both, our environment and our users benefit from this energy saving system to the same degree. A diminished energy consumption unburdens the environment and reduces the cost.
The unit drive motors are designed to fulfil the requirements for the highest energy efficiency class.
If no workpieces are being fed into the machine, they are run down to a low speed and a flap is closed on the suction blower in order to extremely reduce the air throughput.
Depending on its actual load, this reduces the energy consumption of the machine quite considerably.
When new workpieces are fed into the machine, all motors are rapidly started up again.
If the customer-supplied extraction system provides this option the machine can prevent the airflow through units that are not in operation by controlling closure flaps attached to the individual extraction hoods and thus make the extraction system save energy
