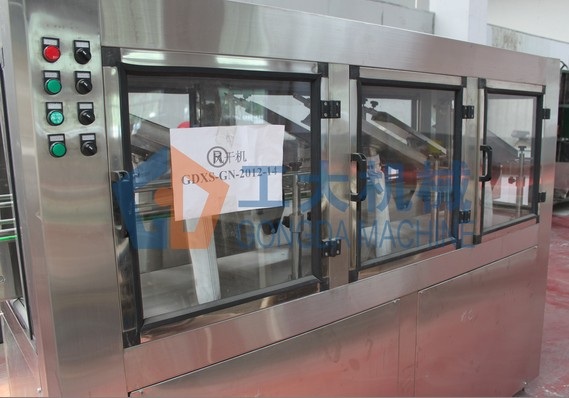

Bottle dryer
Model: Bottle drying machine
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Beverage Packaging Machines
Characteristics
The equipment is the linear structure, mainly made up of frame, air knife system , fan components, piping, electrical system components and so on.
Specifications
Features: The device adopts the leading international advanced air knife technology with stable performance, high visibility, high drying effect, suitable for medium and high-speed production line: the air knife can rotate up and down ,right and left adjusting to dry areas and output level can be adjusted according to the size of air flow and the production capacity with simple operation .The device can apply for different type of bottles with no dust pollution caused by brush, maintenance-free, easy to clean the water from the bottles and porcelain bottles using is with the excellent special effects.
This machine is applicable for drying the bottles before labeling.
1. This machine is reliable, stable and can be used in the production line with high speed.
2. The wind direction is adjustable. The wind mouth can also be adjusted according to actual situation.
3. Almost every kind and size of bottles can be dried by this machine.
4. Low energy cost.
5. No easy-wear accessories or parts.
Capacity |
500-1000BPH |
Wind blade |
2 groups of air knives |
Machine Power |
2KW |
Wind mouth |
550mm (length) |
Max. flow |
300m3/H |
Max. pressure |
30Kpa |
Overall dimension |
1500mm(L)*600mm(W)*1600mm(H) |
Net weight |
600kgS |
