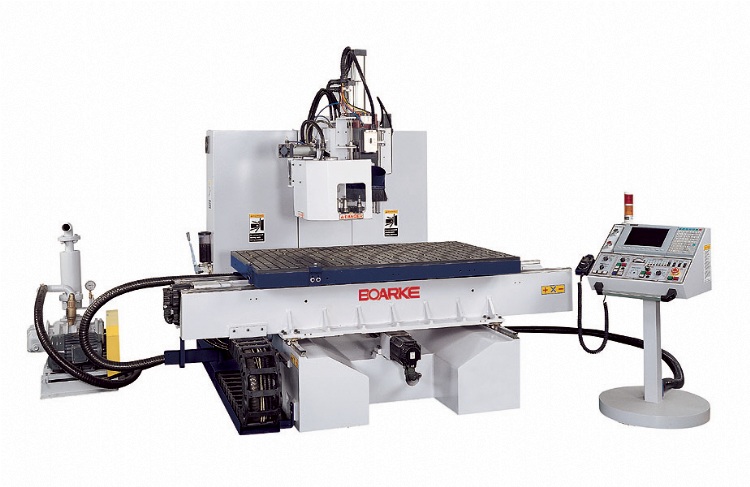

STATIC COLUMN CNC MACHINING CENTER
Model: BWM-R351A
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / CNC Woodworking Machine
Characteristics
*Static column structure design. One spindle and one tool magazine.
*Drum type auto. Tool change system. Tool magazine capacity 8 tools. Tool change time only 8 seconds. (12 tools is option).
*High efficiency, high productivity and economic model.
*High quality and high safety are added value.
*Suitable for machining complex parts of various types and in small quantities.
*Typical applications: kitchen and cabinet doors, audio box panels, gift and stationery cases, etc.
Specifications
| Table | Table size | 900x1500mm (2.95x4.92ft) |
| Max. working stroke | X axis | 1600mm (5.25ft) |
| Y axis | 1000mm (3.28ft) | |
| Z axis | 250mm (0.82ft) | |
| Workpicec height | Max.200mm (7.87") | |
| Rapid speed | X , Y axis | 40M/min (131.23ft/min) |
| Z axis | 20M/min (65.62ft/min) | |
| Spindle | Spindle speed | 1000-24000rpm |
| Main power | Spindle motor | 11HP (8kw)x1 HSD |
| Vacuum pump | 7.5HP (5.6kw) | |
| Dimensions | L | 3000mm(9.84ft) |
| W | 2500mm(8.2ft) | |
| H | 2300mm(7.55ft) |
