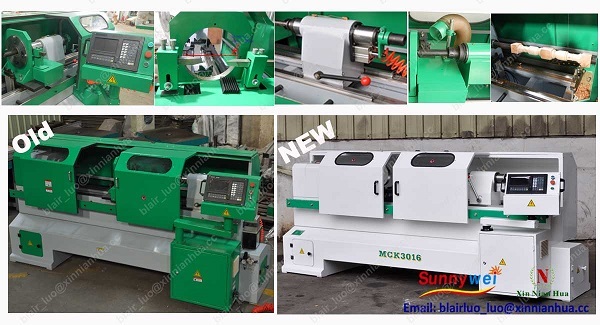

Automatic wood turning lathe MCK3016
Model: MCK3016
Category: Woodworking Machinery Industry / Wood Turning Machinery / Automatic Wood Lathe
Characteristics
Auto wood turning lathe
1.with servo motor
2.with cnc control system
3.can scan the wood shape
4.single or double knives
Specifications
Automatic wood turning lathe MCK3016
USE OF THE MACHINE
It is one of the common equipment that apply in furniture industry and wooden decorative art & craft industry.It mainly use in processing all kinds of shaping retro-rotary work-piece with template or copy shaper for example round bar,whorl pillar Rome pillar, crystal pillar,whorl wood line,wooden stair banister and the back of solid wood chair
MAIN SPECIFICATION AND TECHNOLOGY PARAMETER :
MODEL |
MCK3016 |
Max Cutting Length |
1600mm |
Max Cutting Diameter(double cutter) |
200mm |
Max Cutting Diameter(single cutter) |
180mm |
Spindle speed |
700-3500r/min |
Total power/Voltage frequency |
7kw(9.4HP)/380V 50Hz 3PH |
Consumption of air pressure |
0.6-0.8mpa |
Weight of machine |
about 2000kg |
Overall dimensions(L×W×H) |
About 3200×1100×1550mm |
Main Features Of The Machine:
1.Alloyed cutting tool, suitable for various softwood and hardwood with smooth processing stroke.
2.Unique 2D scanning device transmitted scanned data to control through the accurate scan of master part
3.Designed with dust chokes for dust collection& environmental protection
4.Ball screw, accuracy reached 0.1m,with free unit increment adjustment, highly expend service life
5.Digital control system with LCD, easy operation the turning lathe with conductive instruction system, simple and convenient application
6.Laser scanning modeling, can produce nc document directly.
7.User-friendly operation,NC adjustable speed and stroke control
