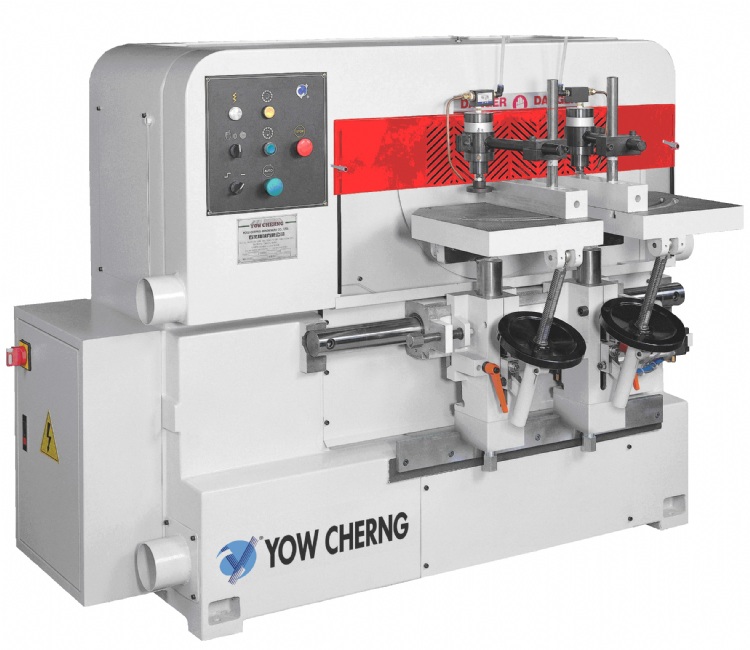

Round End Tenoner
Model: YRT-115
Category: Woodworking Machinery Industry / Others / Other Woodworking Machines
Characteristics
Outstanding Features:
Built with two tables for higher efficiency operations.
High production rate up to 12 pcs per minute.
Pneumatically operated table longitudinal traverse.
Adjustable tenoning width.
The tenon without removing the door, depth can be conveniently adjusted.
Table tilts 20°.
Movable table to save time, and speed can be variable adjustment.
Convenient setup of tenon directions at horizontal, vertical and 45°.
Miter gauge provided on the table allows for cutting bevel tenons.
Oil bushings on the table support and the disk.
Centralized control panel provides convenient operations.
Designed for producing various types of tenon.
Variable table feed speed suits various types of wood material.
Convenient Setup Of Tenon Direction
Three tenon directions at horizontal, vertical and 45° can be fast changed by turning the positioning disk.
A mechanical meter is provided for high accuracy adjustment of tenon sizes.
Oilless Bushings:
Eliminates the use of lubricator, the table support and the disk are equipped with oilless bushings. Manufactured from high tensile copper alloy for long service life, these bushings also feature impact resistance and maximum wear resistance.
Cutterhead Structure (Standard)
1. Suitable for medium hardness wood materials.
2. Production rate 12 pcs per minute.
3. Tearing may occur when applying for high hardness wood materials.
4. Sharpening frequency is 6-7 days of operation.
Variable Cutter Feed Speed
The machine employs two speed regulator knobs to adjust the table feed forward and backward speeds. Variable feed speeds makes the machine ideal for cutting hard and soft wood.
