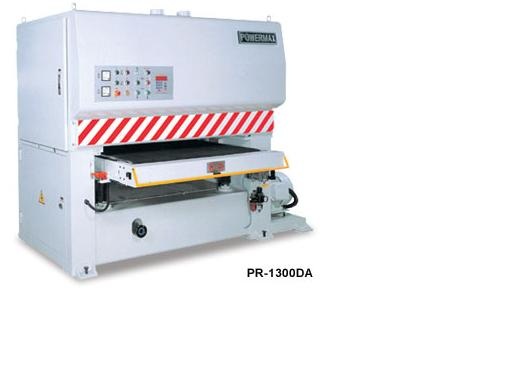

Wide Belt Sander (Heavy Duty Mode)
Model: PR-1300DA
Category: Woodworking Machinery Industry / Sanding & Polishing Machinery / Automatic Wide Belt Sander
Characteristics
31/2' CAPACITY PR-1100D / PR-1100A / PR-1100DA / PR-1100DDA
CHECK THESE OUTSTANDING STANDARD FEATURES
Rugged Construction
The main frame is fabricated of heavy duty-steel plate and ribbed to minimize
vibration and deflection.
Convenient Controls
All operating controllers are centralized in a convenient control panel. Large, clearly
identified and color coded push buttons simplify set up and start-up.
Load Meter
Maintains constant check during operation to indicate percentage of full load on
motor. Conveniently mounted for immediate readout.
Emergency Stop Button
Large mushroom push button on control panel provides immediate stop
control of all operating systems.
Main Motor Drive
Heavy-duty rugged support of sanding head drive motor. Horsepower of motor
directly related to size and performance requirements of specific unit ordered.
Heavy-Duty Rubber Covered Contact Drum
Carefully designed and balanced to insure precise, chatter-free sanding. Covered
with proper durometer rubber for each application.
Spring Loaded Hold-Down Rolls.
Spring loaded hold-down rolls
Spring loaded pinch rolls are mounted at the infeed and outfeed of the
machine to insure positive feeding.
Hold-down plate
The hold-down plate is hard chrome treated for maximum wear resistance.
Variable Feed Speed
Sanders have variable feed speed as standard equipment.
Automatic elevation of conveyor table(Micro-computer controlled
with digital readout)
It accurately display the position of the conveyor table.
￭ SANDING HEAD CONFIGURATION
There are three types of sanding heads:
(1) Contact drum for sizing and intermediated finishing.
(2) Platen head for versatile sanding.
(3) Combination contact drum / platen head. Sanders can be furnished with one
head or multi-head configurations. The most popular are D, A, DA, DD, AA, DDA, DAA
model, but for higher production applications the multi-head are suggested.
