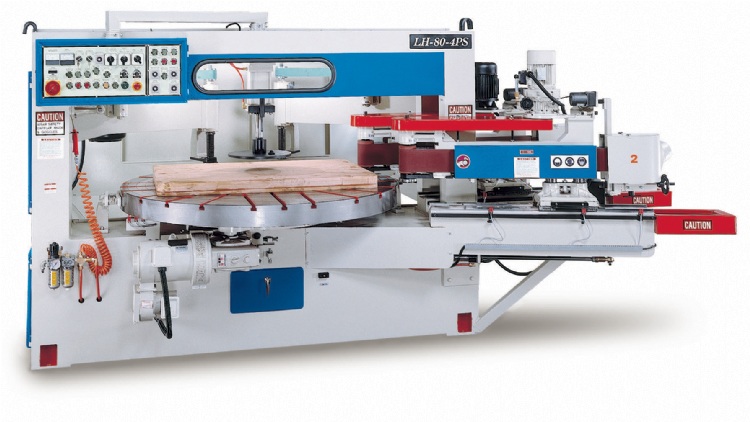

Auto. copy shaping machine with sanding attachment
Model: LH-60-4PS; LH-80-4PS; LH-100-4PS; LH-120-4PS
Category: Woodworking Machinery Industry / Planing & Moulding Machinery / Single Surface Planer
Characteristics
Various sized machines are available with capacity for workpieces from: 3" ~ 120" , suitbale for solid products , plywood, acrylic, etc.
Specifications
Cutting capacity: 12" ~ 80"
Max. cutting length to width ratio: 71.4" *35.7"
TABLE DIAMETER: 62"
TABLE SPEED: 0.5 ~ 3RPM
Spindle speed: 8000rpm
Spindle daimeter: 30mm
Spindle height: 5.5"
Ma. cutter drive range: 200mm
Follower wheel diameter : 100mm
Table drive motor: 2HP/DC
Cutter head drive motor: 10HP*2
Sanding motor: 3HP*2
n.w./g.w.: 3850/4300KGS
Machine size: 3500*1750*1778MM
Packing size: 3700*2250*2200mm
