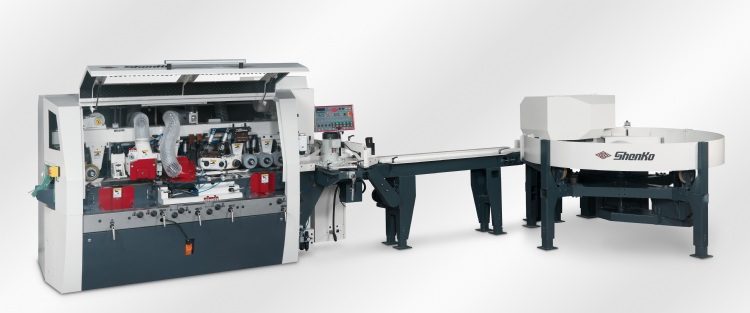

5-spindle moulder c/w centrifugal force feeding device
Model: SKG-230GH/5 + AT11
Category: Woodworking Machinery Industry / Planing & Moulding Machinery / Four Side Planing & Moulding Machine
Characteristics
MAX. WORKING WIDTH : 15-230mm
MAX.WORKING HEIGHT : 10-150mm
MIN. WORKING LENGTH : 150mm
INFEED TABLE LENGTH : 1.2M ( HARD-CHROMED )
SPINDLE ARRANGEMENT AND MOTOR POWER
BOTTOM : 10HP
RIGHT : 10HP
LEFT : 10HP
TOP : 15HP
BOTTOM : 10HP
FEEDING POWER : 7.5HP
FEEDING SPEED : 10M – 60M/min
DIGITAL DISPLAY THE FEED SPEED ON THE SCREEN.
FEED SPEED VIA INVERTER PROVIDE POSITIVE FEED
DIAMETER OF SPINDLE : 40mm
SPINDLE SPEED : 7200RPM
PNEUMATIC PRESSURE ELEMENT
