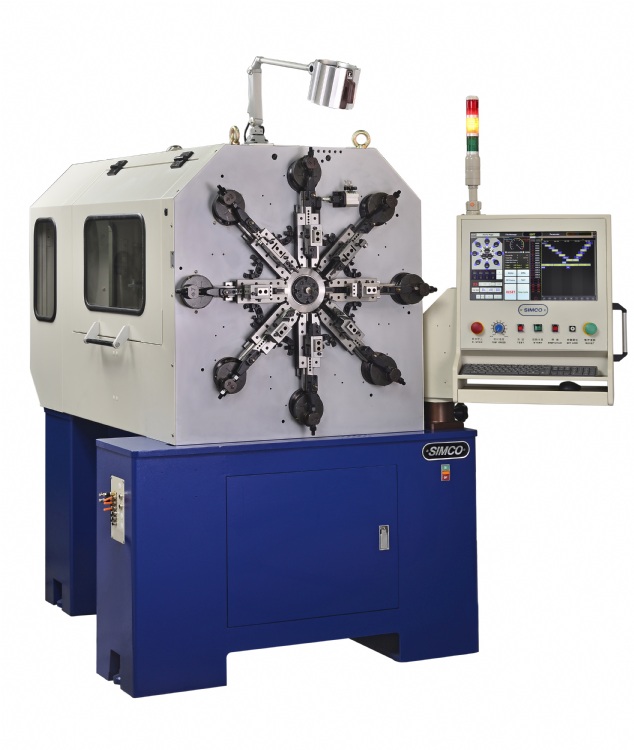

CNC Spring Former
Model: EF-series
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Spring Coil Winding Machines
Characteristics
1. Window-based Motion Control integrates EtherCAT communication.
2. Camless design. Spring setup time can be significantly saved for production.
3.Patented spring editing software of innovative two programing modes. Intuitional chart programming helps to optimize your program, reducing the time gap between axis movement, greatly increase production speed.
4. Feeding unit made of aluminum alloy, supports 360 degree rotation of high speed.
5.Quick release mechanism of wire setting reduces material change over time.
6. Central upper slide (option) can swing to control tension with pneumatic cylinder.
7.Laser sensor (option) allows dimensions to be tightly controlled
8.Camera gauge (option). No need back light. Easy and quick setup. Support outline discrimination, measure of area with various advanced tools.
Specifications
Model No. |
EF-20W |
EF-50W |
|
Standard Axes Quantity |
11 |
||
Max. Axes Quantity |
16 |
||
Wire Diameter (mm) |
0.4~2.3 |
2.3~5.0 |
|
Max. Outer Diameter (mm) |
40 |
120 |
|
Max. Leg Length (mm) |
60 |
100 |
|
Slide Stroke (mm) |
70 |
120 |
|
Power Supply |
220V, 3Æ (transformer 380/400/415/440V is available) |
||
Machine Dimension (mm) |
L |
1600 |
2100 |
W |
1580 |
2110 |
|
H |
1750 |
2850 |
|
Weight (kgs) |
1730 |
4720 |
