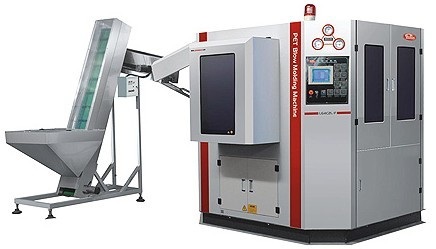

Full automatic stretch blow molding machine
Model: etc.
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Industrial Instruments & Equipment
Characteristics
LG2C2L/F(2-Cavity)
LG4C2L/F(4-Cavity)
LG6C1L/F(6-Cavity)
LG1C5L/F(1-Cavity)
LG2C5L/F(2-Cavity)
Automatic preform input and ready bottle output system.
Machine adopt with the overall structure of super-standard anti-vibration design,high-speed operation state of the machine will shake down to a minimum,and ensure that the life of components using will not affected from mechanical vibrations.
Machine adopt modular assembly methods,greatly decrease the local amendments due to technological improvements when the machine is on processing.
In order to ensure the rate of fonished products,the oven which used in measuring the performance of the machine,sit in a very important position.The structure oven adopt the intemational most advanced energy-saving technology of infrared radiation heating,temperature control with automatic negative feedback,closed-loop regulation model.
Specifications
Technical Specifications an end item General Information LG2C2L/F LG4C2L/F LG6C1L/F LG2C5L/F LG1C5L/F Container Theoretical output Max container volume Max neck diameter Max container diameter Max container height Number of cavity 2500 pcs/hr 1.5L 45mm 100mm 340mm 2 Cavity 4000pcs/hr 1.5L 45mm 100mm 340mm 4Cavity 6000pcs/hr 0.6L 45mm 67mm 270mm 6Cavity 1200pcs/hr 5L 50mm 175mm 350mm 2Cavity 750pcs/hr 5L 50mm 175mm 350mm 1Cavity Electrical System Total power Use power 25kw 15kw 35kw 21kw 45kw 27kw 40kw 25kw 25kw 15kw Air System Working pressure Low pressure consuming Blowing pressure High pressure consuming 1.0 Map 1400L/min ≤3.5Mpa 1200L/min 1.0 Map 1600L/min ≤3.5Mpa 2400L/min 1.0 Map 1600L/min ≤3.5Mpa 3600L/min 1.0 Map 1600L/min ≤3.5Mpa 2400L/min 1.0 Map 1400L/min ≤3.5Mpa 1200L/min Chiller Water Operating pressure Temperature Flow rate 0.3-0.5Mpa 10-12J 30L/min 0.3-0.5Mpa 10-12J 45L/min 0.3-0.5Mpa 10-12J 75L/min 0.3-0.5Mpa 10-12J 45L/min 0.3-0.5Mpa 10-12J 30L/min Machine Machine dimension Machine weight Feeding Machine dimension Feeding Machine weight 1.91.62.0m 1300kg 2.01.02.0m 200kgs 2.52.02.0m 2200kg 2.01.02.0m 220kgs 4.22.02.0m 4200kg 2.01.22.0m /2.10.92.0m 200kgs 2.52.02.0m 1900kg 2.01.02.0m 200kgs 2.01.42.0m 1600kg 2.01.02.0m 200kgs PActual discharges depend on bottle shape and preform qualification. PThe above technical parameters
