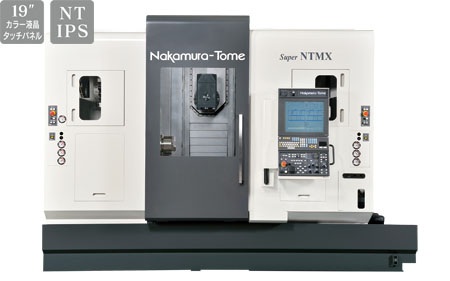

Nakamura-tome Super Multitasking Machine with ATC



Model: Super NTMX

Category: Machine Tools / Lathes / High Speed High Precision Two-Spindle Two-Turret Turning Centers



Online Inquiry





Characteristics



Tool magazines on the left and right hand sides!
Distance between centers max.980mm/min.210mm
48tools Number of stock tool (24x2)
200mm Y-axis stroke (Tool spindle)
12,000min-1 Milling speed (Tool spindle)
7.5/3.7kW Built-in tool spindle motor
Up to 22kW cutting power available for turning shaft-work with synchronized spindles.(Left spindle motor 11/7.5kW、Right spindle motor 11/7.5kW)
5.5/3.7kW Lower turrets Driven-tool motor
230degree B-axis positioning range (±115degree)
