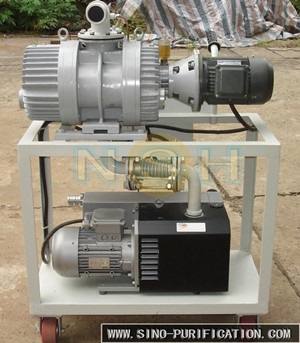

VR series Vacuum Pump System
Model: VR series
Category: Automatic/Industrial Machines & Equipments / Chemical Industry Machines / Filters
Characteristics
VR series vacuum pump systems described here have been designed for rough and medium vacuum operation, i.e. for the pressure range from atmospheric pressure down to 10-4 mbar (7.5 x 10-5 Torr). VR pump systems consist of a combination of individual pumps whereby Roots vacuum pumps are employed on the intake side. Further compression to atmospheric pressure may be performed either by oil-sealed or dry-compressing vacuum pumps, liquid ring pumps or Roots vacuum pumps with pre-inlet cooling. All combinations may be equipped at suitable places with condensers.
Specifications
Technical Specifications |
|||||||
Item |
Unit |
VR-30 |
VR-70 |
VR-150 |
VR-300 |
VR-600 |
|
Capacity |
M3/H |
100 |
250 |
500 |
1000 |
2000 |
|
Maximum Vacuum Range |
Pa |
-0.098 |
|||||
Voltage |
V |
380V/50Hz |
|||||
Working Noise |
dB |
≤ 80 |
|||||
Total Power |
KW |
3 |
3 |
5 |
7 |
8 |
|
Inlet(Outlet) Diameter |
Mm |
DN32 |
DN32 |
DN40 |
DN40 |
DN50 |
|
Weight |
Kg |
450 |
550 |
600 |
900 |
950 |
|
Dimension |
Length |
mm |
900 |
900 |
1000 |
1200 |
1500 |
Width |
mm |
800 |
800 |
800 |
800 |
1000 |
|
Height |
mm |
1200 |
1200 |
1200 |
1200 |
1200
Contact usG Lexi Luo Email:sinonsh707@sino-purification.com; sinonsh707@gmail.com Skype: lexi3377 ALITALK:cn220037706 |
