strainer Y/T/U basket type
Model: Y/T/U Type
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Valves
Characteristics

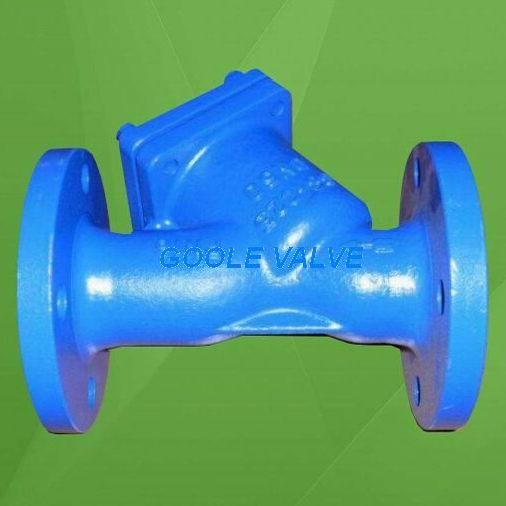

1.DIN Y Type Strainer:
For such sectors as hot oil system, power station, steam system, hot water system, thermal power plant, natural gas supply system, water circulation system and refrigeration system.
2.SB 23 Simplex Basket Strainers:
It’s suitable for high viscous fluid and large circulation needs •It’s suitable for the mixtures of different objects which need large filtration area. •You can choose the material, connection mode according to the use purpose.
3.T type strainer
Product: T type strainer 1.Design Standard:MFG,ANSI B 16.34 2.Face to face standard:ANSI B 16.34 3.Connection standard:ANSI B 16.34 4.Testing Standard:API 598 5.Connection:Flange,Butt welding. 6.Material:WCB,WC1,WC6,WC9,LCB,LCC,LC3,C5,C12,CF8(M),CF8C,CF3(M),etc.
Specifications
http://www.chinavalveworld.com/
1.Y strainer
Pressure Rating: 1.0-4.0Mpa
Specification: DN15-DN500
Material: GS-C25,CF8,CF3
Standard flanges: DIN
Main Parts Material:
- Body: GS-C25, CF8, CF3
- Mesh: F304, F316
- Gasket: Asbestos + S.S, PTFE
- Bonnet: GS-C25, CF8, CF3
- Hexagon nut: ASTM A193 2H, A293-8, A193-8M
- Bolt: ASTM A193 B7, A193-B8, A193-B8M
- Screw Plut: F304, F316
2.SB23-16C Basket Strainers
SB23-16C Basket Strainers
- Characteristics
- It’s suitable for high viscous fluid and large circulation needs
- It’s suitable for the mixtures of different objects which need large filtration area.
- You can choose the material, connection mode according to the use purpose.
- Performance Parameters
|
Type |
SB23-16C |
|
|
Applicable Fluid |
Water, Oil, Steam |
|
|
Applicable Inlet Pressure |
1.6~2.5Mpa |
|
|
Applicable Temperature |
Max.T. 220℃ |
|
|
Connection Mode |
RF Flanged |
|
|
Hydrostatic Test |
2.4-3.8Mpa |
|
|
Material |
Body |
Steel Pipe, Stainless Steel Pipe |
|
Cover |
Carbon Steel, Stainless Steel |
|
|
Screen |
Stainless Steel(304) |
|
|
Gasket |
Asbestos Sheet |
|
3. T strainer
- parameters
|
Type |
ST-A |
ST-B |
ST-C |
ST-D |
|
|
Applicable Fluid |
Water, Oil, Steam |
||||
|
Applicable Inlet Pressure |
1.6-4.0Mpa |
||||
|
Applicable Temperature |
Max.300℃ |
||||
|
Connection Mode |
Flanged |
Butt Welded |
Butt Welded |
Flanged |
|
|
Hydrostatic Test |
2.4-6.0Mpa |
||||
|
Material |
Body, Cover |
Steel Pipe, Stainless Steel Pipe Carbon Steel, Stainless Steel(304) |
|||
|
Screen |
Stainless Steel (304) |
||||
|
Gasket |
Asbestos Sheet |
||||
