Belt Tension Meter

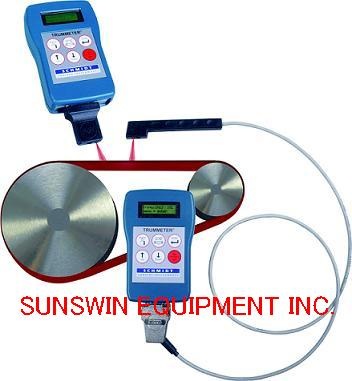

This type consists of a gauge body and two (2) separate sensor probes that emit and receive a pulsed, ruby-red beam of light.
Detachable type probe is a best for one-handed operation on belt surface of 250mm free space.
hand-held, cable-connected type probe, for easier access to hard-to-reach on belt surface of 25mm free space.
The belt tension checked measurement result is displayed either in hertz, newtons or poundforce.
This measured value can be compared with the nominal value - specified by the belt drive manufacturer.
( as a natural frequency in Hz or a strand force in N ).
Note: Where only Belt Vibration Frequency (Hz) is of interest, belt characteristics need not be entered into the microprocessor.
Display Font height: 3.5 mm, Input & Display units: SI and US.
RTM Technical data:
Measuring range: 10 – 800 Hz
Probe ：Pulsed red beam
Effective sensing distance： 3~20mm
Digital sampling error: < 1%
Indication error: +/- 1 Hz
Total error: +/-5%
Nominal temp.: +20° C,
Operating temp.: +10° ... +50°
Shipping temp.: -5° ... +50°
Casing Plastic: (ABS)
Dimensions, Meter 80 x 126 x 37
Dimensions, case : 226 x 178 x 50
Display: 2-line LCD, 16 char./line
Languages: 10, not support chinese
Input range: Span up to 9.99 m, can't measure span over 1.5m
belt mass: up to 9.999 kg/m
Powersupply: 9-V battery
