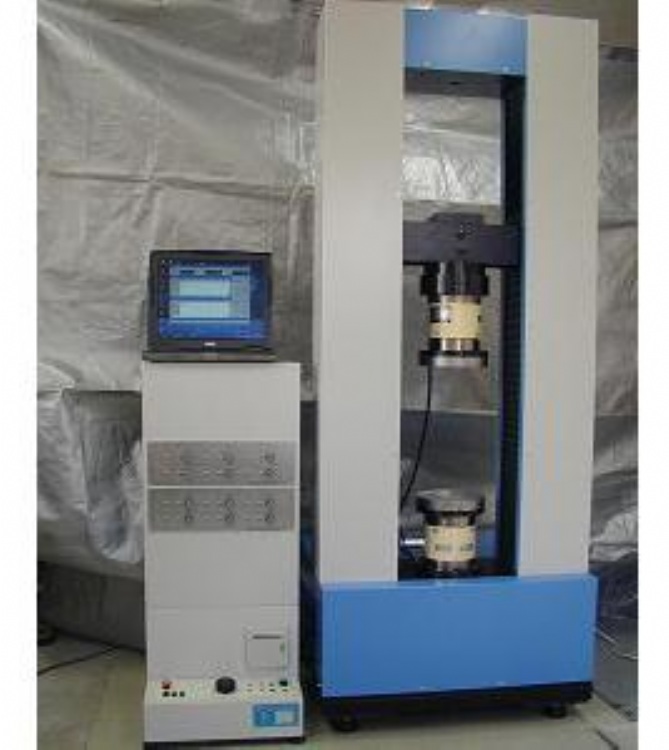

Automatic Spring Multi-component Load Testing Machine
Linked and controlled per desktop or laptop with windows O/S to measure suspension springs.
Apply the most precision force sensors to detect six sideforces and six moments of a spring.
Over load protection function.Max. 39 measuring steps of testing positions can be set, relative curves are able to be made as well.
Testng conditions and result data can be stored in txt format, and reading by Excel is available.
Equipped a convenient manual handle-wheel to drive upper disc for a fine distance and smoothly.
Data can be shared per internet in the company.
Model:A1K, A5K, A20,
KLoad capacity Fz: 1,000.0 N 5,000 N 20.00 kN
Side force Fx,Fy: 100.00 N 500.0 N 2.000 kN
Moment Mx,My: 15,000 N-mm 75,000 N-mm 300 kN-mm
Momeny Mz: 2,000 N-mm 10,000 N-mm 100 kN-mm
