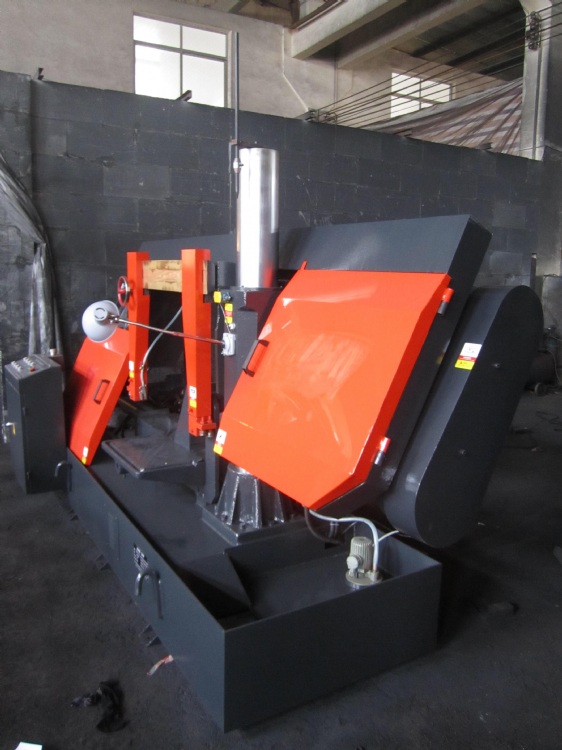

Pipe Cutting Band Saw Machine
Model: PCBSM-24A
Category: Machine Tools / Sawing Machines / Band Saws, Horizontal Type
Characteristics
Highly-efficient Pipe Cutting Band Saw Machine
Model: PCBSM-24A1; PCBSM-16A1
Performance features
On-line Performance: good (designed as per the one line equipment of the production line)
Cutting efficiency: ≤2Min /pipeline bevel (DN200 SCH40); ≤3Min /pipeline bevel (DN200 SCH40)
Opening quality: good
Price: low
Specifications
Technical parameters
Structure: horizontal and with two posts
Pipe diameter applicable: DN50∼600(φ60∼610);DN50∼400(φ60∼426)
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel
Feeding speed: stepless speed adjustment
Speed of the band saw: 27, 52 or 78 m/min；18, 42 or 68 m/min
Size of the band saw: 6700X*41*1.3; 4570X*34*1.1
Length-fixing system: a mechanical Length-fixing system could be provided if necessary so as to fix the length of the pipes as well as cut and bevel them with the supporting of the band saw conveying system.
Conveying system: Cutting and beveling VF band saw conveying systems driven by motor are equipped if necessary.
