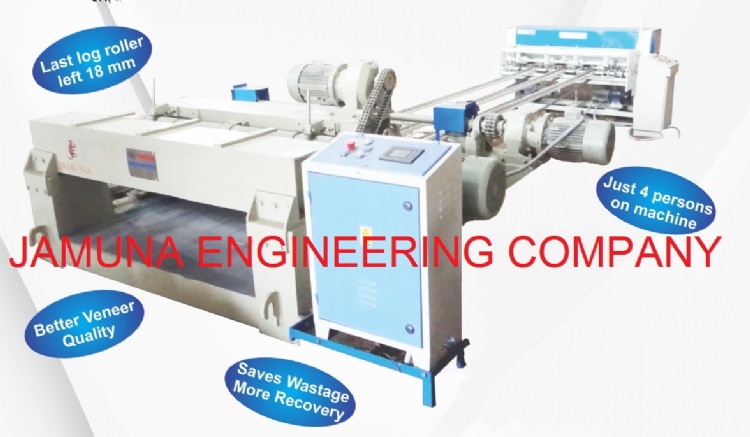

Spindleless Log Peeling Machine
Model: JEC-1814
Category: Woodworking Machinery Industry / Veneer & Plywood Manufacturing / 2nd Processing Equipment for Plywood
Characteristics
We JAMUNA ENGINEERING COMPANY INDIA'S First company who manufactured Spindleless Log Peeling Production Line. In INDIA only Jamuna Spindleless Log Peeling machines are successful and more then 50 machines are working in North India.
Our machines are user friendly and easy to use.
You can view video of Spindleless Log Peeling Production Line 35th working project –
http://www.youtube.com/watch?v=giX3ahsXzfs
For more details contact us.
Sandeep Singh
09896015530
09215732001
Specifications
INDIA's FIRST COMPANY WHO MANUFACTURED LOG DEBARKER MACHINE & ROUND-UP MACHINE JEC1400.
THIS IS THE NEWEST MODEL DEBARKER FOR
SPINDLELESS CORE VENEER PEELING & ROTARY LOG PEELING MACHINE.
IT CAN BE INSTEAD OF ROSSER HEAD LOG DEBARKER.
IT CAN BARK THE SKIN OF THE LOG AND THEN MAKE THE LOG ROUND, IT WILL BE MORE CONVENIENT FOR SPINDLE LESS VENEER LOG PEELING &
OTHER PEELING MACHINE TO PEEL THE LOG.
PARAMETER
JEC1400
LENGTH OF THE BALDE(MM) 1400
MAX. DEBARKING LENGTH(MM) 1400
HYDRAULIC STATION POWER(H.P) 3
MAIN MOTER(H.P) 15.5
DIMENSION OF DEBARKING MACHINE(MM) 2800× 1795× 1350
2) JAMUNA Spinleless Log Peeling Machine is used to peel the eucalyptus, cotton and other all fast-growing lumber. It uses PLC control system with Indian Jamuna made program.
JAMUNA 1815 XL
Working diameter (mm) Φ 300
Max. working length (mm) 1400
Veneer thickness (mm) 0.8-2.5
Log-core diameter (mm) Φ 18
Veneer output speed (m/min) 60
Total motor power (HP) 22.5
Overall dimensions (mm) 3621 x 1600 x 1020
Weight (kg) 4000
3. Jamuna Veneer core Cutting Machine
Continuous Cutting ,
High efficiency
Max Working Width: 1300 mm
Cutting Width: 350-900 mm
Cutting Speed: 10-80m/min
Cutting Veneer Thickness: 0.5-3.6 mm
Equipped Power: 2 HP
