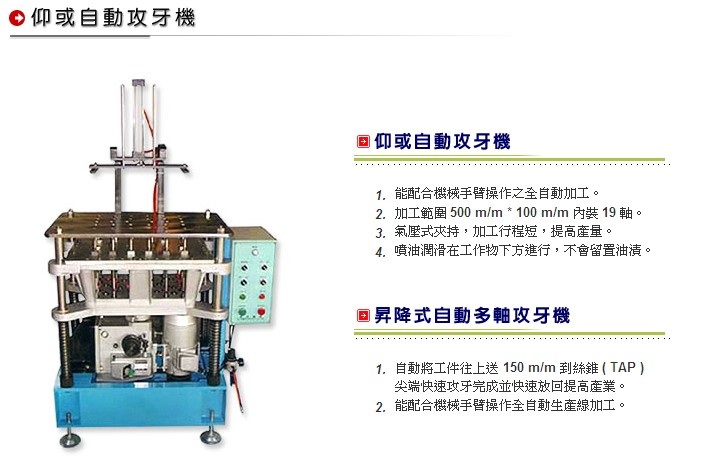

Upward Automatic Tapping Machine
Model: TY-1000
Category: Machine Tools / Drilling Machines / Tapping Machines, for Nuts
Characteristics
1 can operate with the automatic processing of the robot arm.
2. Processing range 500 mm * 100 mm built 19 axis.
3. Pneumatic clamping, processing short trip, to increase production.
4 injection lubricating material at the bottom of the work performed, not indwelling grease.
Specifications
Upright |
TY - 1000 |
TY - 800 |
TY - 600 |
TY - 550 |
Machining range |
1000 mm * 700 mm |
800 mm * 550 mm |
600 mm * 500 mm |
550 mm * 420 mm |
Minimum diameter |
2-hole distance 18 |
2-hole distance 18 |
2-hole distance 18 |
2-hole distance 18 |
Tapping capacity |
Ø2.0-Ø5.0 |
Ø2.0-Ø5.0 |
Ø2.0-Ø5.0 |
Ø2.0-Ø5.0 |
Motor |
3HP6 |
3HP6 |
3HP6 |
3HP6 |
Always use the colli |
C6 . C5 |
C6 . C5 |
C6 . C5 |
C6 . C5 |
