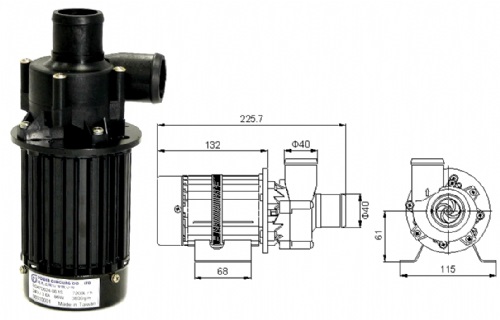

Brushless DC Mechanical Seal Pump
Model: Mechanical Seal Pump
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Motors and Pumps
Characteristics
1. Low temperature rise, durability and long life.
2. Variable speed available and low noise.
3. High level of efficiency and energy-saving.
4. Environmentally friendly operation and free maintenance.
5. Motor protection: reverse polarity, locked-rotor protection,
soft start protection, over current protection,
total enclosure and waterproof.
6. Customize for dry running protection, over voltage protection,
lower voltage protection and over temperature protection.
7. Design and manufacture in Taiwan.
Specifications
Model P047D024-001S: DC24V, 3.5A, 84W, 0.2bar against 5300L/h
Model P047D024-002S: DC24V, 7.0A, 168W, 0.4bar against 6000L/h
Model P047D012-008S: DC12V, 6.7A, 80W, 0.2bar against 5000L/h
Model P047D024-012S: DC24V, 10.5A, 252W, 0.4bar against 7000L/h
