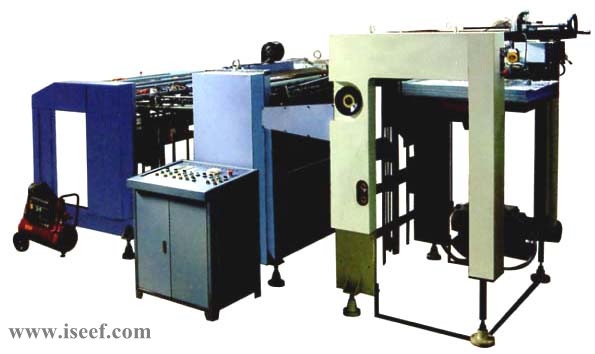

CE-Auto embossing machines YW-E-ISEEF.com
Model: YW-1150E
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Embossing Machines
Characteristics
PRODUCT DESCRIPTION
The automatic paper embossing machine with the functions like automatic feeding& collecting paper was developed at the basis of the original embossing machine with manual feeding and collecting, Full automatic control in processing.
Adopted frequency governor, automatic hydraulic system and pneumatic blade, it is characterized by controllable speed, double-sheet control, automatic counting, etc. Its average can range form 3000~5000pc/h. It is applied to embossing the sheet surfaces of batches like packing products, playing cards, gift cards, golden and silver card paper, etc.
Specifications
MAIN TECHNICAL INDEX
Model |
YW-1150E |
Max embossing speed |
80 m/min |
Max embossing width |
1000 mm |
Paper range |
>160 g/m2 |
Operation pressure |
2-10 Mpa |
Main motor pressure |
15 kw |
Vacuum pressure |
0.06 Mpa |
Air source pressure |
1.8-1.0 Mpa |
Overall dimension(LxWxH) |
4800x1800x1800 mm |
Weight |
4200 kgs |
