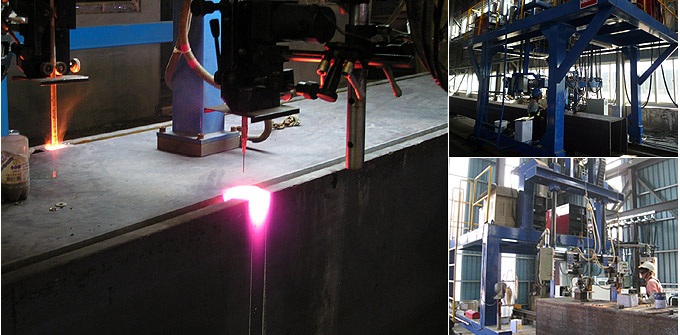

Simplified Electroslag Welding Machine
Model: SEG-3000
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Welding Equipment
Characteristics
SESNET (simplified electroslag welding process with nonconsumalbe elevating tip) is a highly efficient welding process in which a nonconsumable nozzle, used to guide the electrode, is designed to elevate automatically as welding progresses. It is most effective when used to weld short joints in steel skeletons and industrial machines.
Specifications
Power Supply: |
3 Phase / 380V / 50Hz |
Driving System: |
Synchronized Double DC motor |
Gauge: |
3000 mm |
Height: |
300mm - 1200mm |
Width: |
300mm - 1200mm |
Length of Travel: |
15000mm |
Plate Thickness: |
16mm - 65mm |
Steel Grade: |
Mild Steel / 50-kg High Tensile Steel |
Groove: |
Square and single bevel groove |
Joint Length: |
1200mm |
Joint Geometry: |
T joint and butt joint |
Wire Diameter: |
1.6mm (300kgs) |
Power Source: |
Lincoln DC-600 |
Wire Feeder: |
Lincoln LF-74 |
