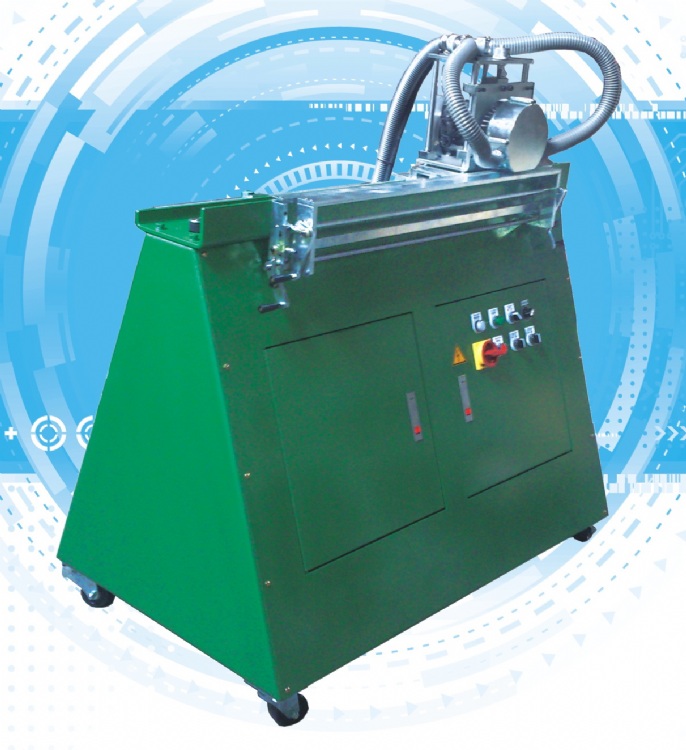

Squeegee Sharpener
Model: MF-GR700
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Printing Material Supply
Characteristics
Application: Sharpening the squeegee for screen printing.
Features:
1.Diamond grinding wheel, easy cleaning, no long-term consumables required.
2.Adjustable grinding speed for various squeegees.
3.Result sharp and smooth squeegee edge.
4.Easy squeegee holding device.
5.Vacuum for removing squeegee wastes.
6.The grinding angle is adjustable.(Optional)
Specifications
規格 |
Specifications |
MF-GR700 |
MF-GR1000 |
MF-GR1300 |
研磨長度 |
Sharpening Length |
700mm |
1000mm |
1300mm |
研磨深度 |
Sharpening Depth |
0~20mm |
0~20mm |
0~20mm |
刮膠厚度 |
Squeegee Thickness |
6~10mm |
6~10mm |
6~10mm |
刮膠柄高度 |
Squeegee Holder Height |
70~115mm |
70~115mm |
70~115mm |
電源 |
Power Source |
220V, 3-phase |
220V, 3-phase |
220V, 3-phase |
耗電量 |
Power Consumption |
2.25KW |
2.25KW |
2.25KW |
重量 |
Weight |
100KG |
150KG |
200KG |
