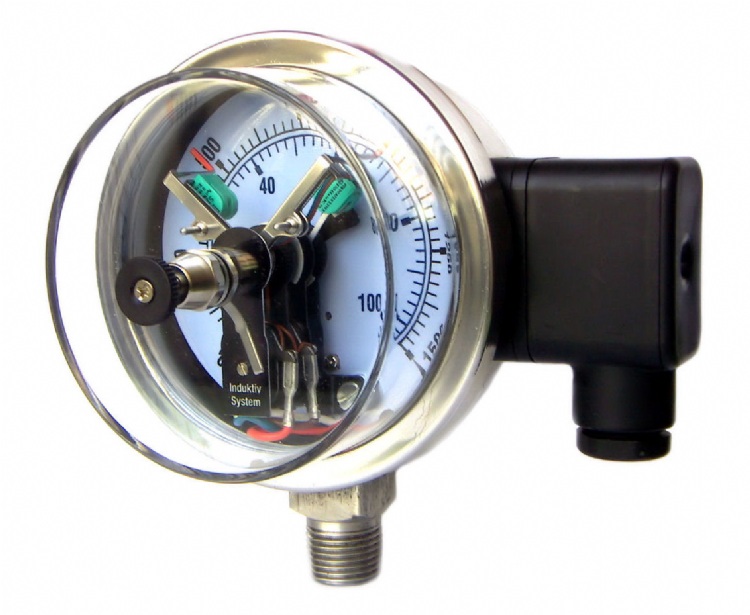

Inductive Contact Pressure Gauges, Pressure Gauge with Inductive Contact



Model: IPG-100

Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Hydraulic Components



Online Inquiry





Characteristics



We are a manufacturer of pressure gauges both digital and dial liquid-filled pressure gauges, digital pressure gauges, digital pressure gauge, digital pressure switches, digital pressure switch, inductive contact pressure gauges, liquid filled pressure gauges, glycerin-filled pressure gauges, glycerin filled pressure gauges, glycerine-filled pressure gauges, glycerine filled pressure gauges, pressure gauges, pressure gauge, gauges, gauge, gages, gage, abs case pressure gauges, diaphragm seal pressure gauges, vacuum and compound pressure gauges, gauge and gauges, manometers, digital pressure gauges, pressure transducers, electric contact pressure gauges, pressure gauges with electric contact, electric contact, patented economical electrical contact pressure gauges, patented economical pressure gauge with electrical contact, patented non-contact type electrical contact pressure gauges, patented non-contact type pressure gauge with electrical contact, patented double-sided digital pressure gauges for PCB industries, patented double-sided digital pressure switches for PCB industries, patented double-sided pressure transmitters and transducers for PCB industries, patented double-sided liquid-filled pressure gauges for PCB industries, diaphragm pressure gauges, patented hydraulic and pneumatic pressure switch with gauge, utility gauges, dry gauges, temperature gauge, temperature gauges, digital pressure gauges, digital pressure gauge, digital pressure switches, digital pressure switch, digital manometers, digital manometer, pressure transducers, pressure transducer, pressure transmitters, pressure transmitter, pressure gauges with electric contact, SF6 gas density monitors, SF6 gas density gauges, SF6 gas density meters, SF6 gas monitors, SF6 gas gauges, SF6 gas meters, SF6 density monitors, SF6 density gauges, SF6 density meters, SF6 monitors, SF6 gauges, SF6 meters, and industrial thermometers.All our pressure gauges are full scaled 1.5% accuracy suitable for all industrial applications.Our outstanding quality is definitely your best choice for pressure gauges and industrial thermometers.

Liquid-Filled Pressure Gauges:
-Sizes ranging from 1 1/2" (40 mm) to 6" (150 mm); pressure ranges ranging from vacuum, compound, to 15,000 psi.All series are liquid-filled, water-proof, CE compliant, and shock resistant for long-lasting usages.
-Model: Bayonet Ring Type and Crimped Bezel Type.
-Casing: SS 304.
-Tubing: Standard Brass, Phosphor Bronze and SS 316 upon request.
-Movement: Standard Brass, SS 304/316 upon request.
-Connection: Standard Brass, SS 316 upon request.
-Accuracy: 1.5% F.S.

All Stainless Steel Pressure Gauges:
-Sizes ranging from 1 1/2" (40 mm) to 6" (150 mm); pressure ranges ranging from vacuum, compound, to 15,000 psi.All series are liquid-filled, water-proof, CE compliant, and shock resistant for long-lasting usages.
-Model: Bayonet Ring Type and Crimped Bezel Type.
-Casing: SS 304.
-Tubing: SS 316.
-Movement: SS 304.
-Connection: SS 316.
-Accuracy: 1.5% F.S.

Pressure Gauge with Electric Contact:
-Sizes ranging from 3" (75 mm) to 4" (100 mm); pressure ranges ranging from vacuum, compound, to 15,000 psi.All series are CE compliant, and shock resistant for long-lasting usages.
-German-made contact devices.
-Model: Bayonet Ring Type with Lower Mount (LM), Lower Mount with back Flange, Lower Back Mount (LBM), and Lower Back Mount with Front Flange.
-Sizes: 3" (75 mm) & 4" (100 mm)
-Casing: SS 304.
-Tubing: SS 316.
-Movement: Standard Brass, SS 304/316 upon request.
-Connection: Standard Brass, SS 316 upon request.
-Accuracy: 1.0% F.S.
-Pointer: German-made Aluminum Pointer.
-Cable Connection: Plastic.
-Contact: High (A), Low (B).
-Contact Types: Single, Double, Triple, and Quadruple.
-Permanent Current: 0.6 A max.
-Switching Capacity: =30W-50VA max.
-Contact Pin Material: Ag80 Ni20.
-Ambient Temp: -20C to 70 C
-Operating Voltage: 24 VDC to 250 VAC max.
-Making Current: 1.0 A max.
-Breaking Current: 1.0 A max.

Economical Type Electrical Contact Pressure Gauges:
FTB-Patented Worldwide
-Size 4" (100 mm); pressure ranges ranging from vacuum, compound to 15,000 psi.All series are CE compliant, and shock resistant for long-lasting usages.
-FTB-patented non-contact type contact devices.
-Model: Bayonet Ring Type with Lower Mount (LM), Lower Mount with back Flange, Lower Back Mount (LBM), and Lower Back Mount with Front Flange.
-Size: 4" (100 mm-Adjustable Setting).
-Casing: Chrome-Plated Steel Case.
-Tubing: Standard Brass or Optional SS 316.
-Movement: Standard Brass, SS 304/316 upon request.
-Connection: Standard Brass, SS 316 upon request.
-Accuracy: 1.5% F.S.
-Pointer: Aluminum Pointer.
-Cable Connection: Plastic.
-Contact: High (A), Low (B).
-Contact Types: Single, Double.
-Switching Current: 0.23 A DC/AC max. at 220 VAC.
-Switching Capacity: 50 VA max.
-Operating Temp: -40C to 125C
-Storage Temp: -55C to 155C
-Operating Voltage: 24 VDC to 240 VAC max.
-Carrying Current: 0.23 A DC/AC max. at 220 VAC.

Hydraulic and Pneumatic Pressure Switches:
FTB-Patented Worldwide
-Sizes 2 1/2" (63 mm), and 2" (50 mm); pressure ranges ranging from vacuum, compound to 15,000 psi.All series are CE compliant, and shock resistant for long-lasting usages.
-FTB-patented non-contact type contact devices.
-Model: Bayonet Ring Type with Lower Mount (LM), Lower Mount with back Flange, Lower Back Mount (LBM), and Lower Back Mount with Front Flange.
-Sizes: 2 1/2" (63 mm-Fixed Setting), and 2" (50 mm-Fixed Setting)
-Casing: Chrome-Plated Steel Case.
-Tubing: Standard Brass or Optional SS 316.
-Movement: Standard Brass, SS 304/316 upon request.
-Connection: Standard Brass, SS 316 upon request.
-Accuracy: 1.5% F.S.
-Pointer: Aluminum Pointer.
-Cable Connection: Plastic.
-Contact: High (A), Low (B).
-Contact Types: Single, Double.
-Switching Current: 0.42 A DC max.
-Switching Capacity: 10 VA max.
-Operating Temp: -40C to 125C
-Storage Temp: -55C to 155C
-Operating Voltage: 24 VDC max.
-Carrying Current: 0.42 A DC max.

Pressure Transmitter Switches:
FTB patented pressure transmitter switches to replace the current transmitters out there on the market to save huge costs by omitting the analog outpout coder/decoder, special power for the pressure transmitter, and the mechanical pressure indicator (gauge) installed on the machine.

Diaphragm Pressure Gauges:
FTB pressure gauges are especially suitable for pressure sources with corrosive acids, fluids, or sticky compounds combined where pressure sources might harm the gauges directly.They are widely used in petroleum, food, chemical, and pharmaceutical industries.

Digital Pressure Gauges/Switches/Pressure Transducers & Transmitters:
The DPG-75/DPS-75/PT-75 Digital Pressure Gauges/Switches/Pressure Transducers & Transmitters with 1% full scale accuracy uses FTB-developed and patented technology as your cutting edge, cost-saving provider for digital solutions.The FTB-developed technology delivers stable and long-lasting performance.5 1/2 digit blue backlit LCD display makes DPG-75/DPS-75/PT-75 the largest in window sizeDigital Pressure Gauges/Switches/Pressure Transducers & Transmitters found available on market.The DPG-75/DPS-75/PT-75 were built for the applications which the cost for digital solutions is highly concerned.

The DPG/DPS/PT-75 are rugged and feature High Pressure Capture with pressure ranges ranging from vacuum (bar, "Hg, cmHg, mmHg) to 15,000 PSIG (displayed also in bar, kg/cm2, MPa, and kPa).An AC power adapter of 100-240 Volts with 50-60 Hz is included for easy installation; also, an DC power of 5-24 Volts is available as an option for DC power input as well.Typical applications include test and measurement in the process industries, hydraulic and pneumatic systems, industrial gases, industrial machinery and machine tools, injection molding machines, stamping and forming presses, and pumps and compressors.

Besides the functions that the DPG-75 has to offer, the DPS-75 Digital Pressure Switch does deliver an additional pressure switch function to the applications which the control of set pressures is needed.Equipped with 8 Pressure Setting Points, the DPS-75 is the most economical digital pressure switch available on market ever.

Furthermore, the PT-75 Pressure Transducers and Transmitters also deliver the transducer and transmitter functions with 4 standard outputs as 0-20 mA, 4-20 mA, 0-5 VDC, and 0-10 VDC.More to find from our catalog page.

Features:
+- 1% Full Scale Accuracy.
Ranges from Vacuum to 15,000 PISG (1,000 kg/cm2).
Positive Pressures (bar, psi, kg/cm2, MPa, and kPa).
Negative Pressures ("Hg, cmHg, mmHg, and bar).
5 1/2 Digit Blue Backlit LCD Display.
High Pressure Capture.
CE Compliant.
Rugged ABS Plastic Housing with Black Lacquered.
Customer Recalibration.
Zero Offset/Tare.
Output Signal: 4-20 mA, 0-5/10 VDC.
