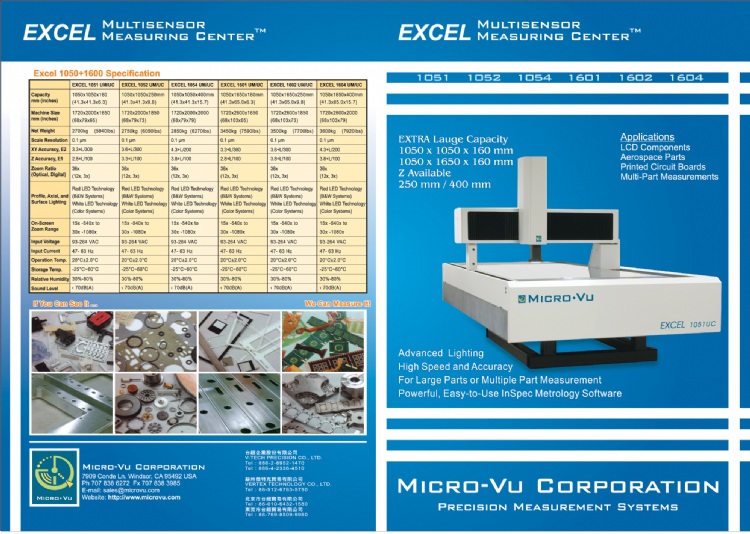

Micro-Vu Excel
Model: Micro-Vu Excel
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Specifications
Manufacturer Micro-Vu
Machine Excel
Measuring Range (600x600x150mm) for Excel4120&4220&4520
(900x1200x150mm)for Excel5120&5220&5520
(1200x1500x150mm)forExcel6120&6220
(1250x2000x200mm)forExcel200
(1600x2500x200mm)forExcel250
Resolution 0.00002" (0.0005mm)
Accuracy XY Uxy=3.0+L/300
Repeatability XY Uxy=3.0
Accuracy Z Uz=3+L/150
Repeatability Z Mech Uz =3
Repeatability Z Focus Uz =3
Drive System Servo
Max Velocity XY 20"/s (500mm/s)
Max Velocity Z 4"/s (100mm/s)
Max Acceleration 40"/s2 (1000mm/s2)
Load Capacity 220 lb (100 kg)
Optics 12:1 Zoom
Illum. Profile LED
Illum. Coaxial LED
Illum. Surface 5 LED Rings
Camera B/W 768x494
Computer, OS 2.8GHz+, Windows XP
HD, RAM, CD 250GB+, 1GB+, CD-RW
Softwre InSpec
Monitor 19” LCD
Construction MonoRail, Granite
