Mobile crushing plant dragon crushers for sale



Model: Mobile crushing plant dragon crushers for sale

Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Machinery for Building Materials



Online Inquiry





Characteristics



"TURBO 600 was designed for producers and contractors that require a complete system in a portable configuration.
The TURBO 600 is equipped with a vibrating grizzly feeder with loading hopper, primary jaw crusher,
secondary crusher (Impact Crusher or Cone Crusher), 3-deck sizing screen, all on-plant transfer conveyors and stacking conveyors to stockpile the final products.
This system will provide producers with a complete 2-stage crushing and screening system that can produce up  to 3-sized products in one single package. The plant can be equipped with multiple axle configurations and other features to enhance its portability.

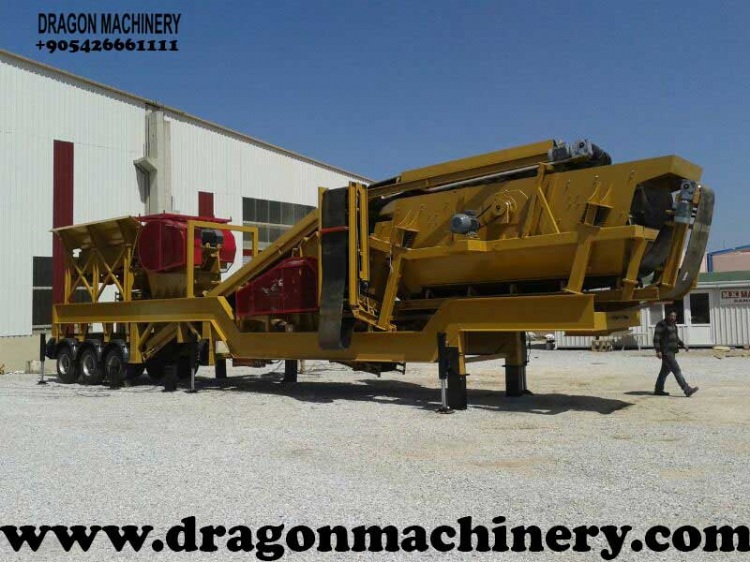

New System Mobile Crusher Plant Turbo 600
1. Feeder and Hopper
Size : 750x 3000 mm   10 m3    ( Optional  11 m3 )
Vibrator System Feeder
Grizzly System Feeder
2nos. Vibrator adjusttable throw amplitude Oli
2. Jaw Crusher 600 x 400 mm
Size: 600x400 mm Primary type
Motor: 55 kW
Jaw Crusher Is Setting Mechanism can be adjusted easily.
3. Main Conveyor System
Type tracked conveyor.
4. High Capacity Vibrating Screen
Size : 1300×4000 mm 3 Deck or 4 Deck
Motor : 11 Kw
5. Impact Crusher ( Hard Material Crusher )
1100x 750mm
Motor : 75 - 90 Kw
6. Stock Conveyor
3 Unit
7. Feedback Conveyor Belt 2 Pcs
500 mm - 600 mm
8. Mobile Chassis ( Special Type )
3-axle Chassis private constriction
9. Control Panel ( Chassis Coupled )
10.Natural soil Conveyor Belt ( Optional )
11.  Optional Generator
* Frequency and Speed Control system Turbo Crusher Enabling Speed setting (Optional)
This system for fuel savings of 50%    ,Approx fuel consumption 21 - 23 Lt / h
4 Deck Screen  :  4 Deck and 4th Stock Conveyor Belt  (Optional )
Total Weight : 41.000 Kg
Dragon Crushers Inc.'s line of Dragon 9-10-15-20,Turbo 600,900 portable plants are designed for a wide variety of applications. Though each plant is different, each is the same in fundamental ways: Portability, dependability, durability, competitive capital costs, low cost maintenance and designed to meet customer's needs.

Portability has been a major concern for customers along with quick setup time. We have accommodated our customers' concerns by making most of our plants portable in one single unit. Since our plants are portable in one piece they use minimal time in set-up and tear-down. To further reduce set-up and tear-down time, all plants come standard with telescoping screw jacklegs or optional hydraulic lifting legs for fast set-up and to eliminate the time consuming task of cribbing. We have designed our plants to be able to be placed and running in minimal time providing our customers with reduced set-up costs and increased productivity.
We have proven the dependability and durability of our plants with years of service in the field. These plants have crushed everything there is to crush and run day-in and day-out and they're still going strong. We constantly look for ways to improve our designs, make our plants better and continue to out last the competition.
Our plants are designed with the idea that a plant should be easily maintained. We understand the time spent maintaining a plant is time that could be spent producing material. We strive to design our plants to minimize the time needed to do the necessary maintenance.

Dragon Crushers specializes in design and application - the right product and the right flow plan to accomplish your particular job. Many of our plants are designed around our customer's specifications but we always keep an eye on flexibility. Since our plants are designed with our customer's needs in mind we are able to build a more efficient plant and/or eliminate the need for additional equipment to accomplish the same task.

"
