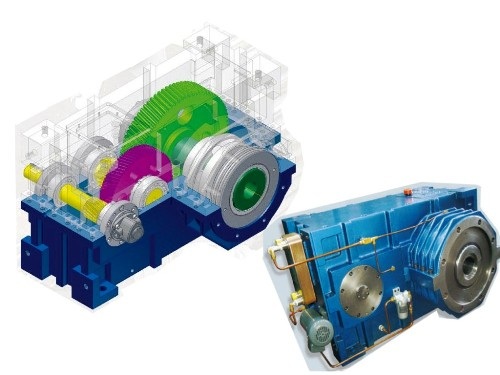

GEAR,GEAR BOX, GEAR REDUCER
Model: GEAR,GEAR BOX, GEAR REDUCER
Category: Machinery Parts and Components / Machinery Parts and Components / Gear Motors
Characteristics
1.Standard Gear Ratio 10:1、15:1、20:1. (in stock)
Other gear ratio is also available upon request.
2.Steel Grade: gear shaft and pinion gear by Forged SNCM220 (AISI 8620, DIN 17CrNiMo6)
big Gear by SCM415 (AISI 4115, DIN 20CrMo5),
Gear grinding precision at class JIS 0~2.
3.All Bearing: SKF Sweden
4.All Seal location with hard-chrome plating.
5.All seal: NOK Japan
6.Casing: FC25
Specifications
型號 止推軸承 最大馬力 螺桿外徑 出力軸 入力軸
SL250 29440 250HP / 188 KW 150~200 100~12 85
SL200 29436 200HP / 150 KW 120~150 90~110 75
SL175 29434 175HP / 132 KW 120~150 90~110 70
SL150 29432 150HP / 113 KW 100~120 80~100 70
SL125 29430 125HP / 94KW 100~120 80~100 65
SL100 29428 100HP / 75 KW 85~100 70~90 60
SL75 29426 75HP / 57 KW 75~90 60~80 55
SL50 29424 50HP / 38 KW 65~75 50~70 50
SL40 29422 40HP / 30KW 55~65 40~60 40
SL30 29418 30HP / 23 KW 45~55 30~50 38
SL20 29416 20HP / 15 KW 40~50 30~40 30
SL10 29414 15HP / 12 KW 30~40 20~35 28
