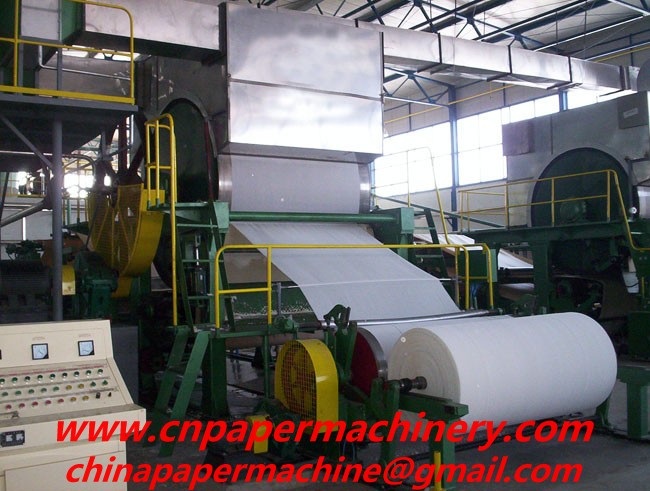

Model 1575 tissue paper/toilet paper making machine
Model: 1575
Category: Automatic/Industrial Machines & Equipments / Paper Making & Converting Machines / Paper Tissue Machinery
Characteristics
This plant consists of stock preparation, Model 1575 tissue paper making machine, and boiler. This is a complete production line from the raw material (could be recycled paper and virgin pulp) to tissue jumbo rolls. We can also supply other tissue paper converting machines if you need make the jumbo roll to other final products.
What the buyer need to prepare besides the scope of supply is the factory construction; pipes for pulp, water and steam; valves for connecting; water supply; electricity supply; raw material; chemical materials, etc.
Specifications
1. Technical parameter
1. Raw material: recycled paper, virgin pulp
2. Output paper: High & medium grade of tissue paper
3. Output weight: 13—40g/m2
4. Net paper width: 1575mm
5. Cylinder mould width: 1950mm
6. Capacity: 3 T/D
7. Design speed: 120m/min
8. Working speed: 60-100m/min
9. Rail gauge: 2400mm
10. Pulp formation type: pressure mould former
11. Design Standards: CNS Export equipment
12. Dryer: Wire-releasing part: ≥18-24%
Squeezing-mill releasing part: ≥38-40%
Manufactured paper dryness: 90-92%
13. Calculated running time in a day: 22.5 hours
14. Calculated outputting rate: 97%
15. Calculated finished product rate: 95%
2. Stock preparation
|
No |
Name |
Type |
Quantity |
Motor （kw） |
|
1 |
hydrapulper |
3m3 |
1 |
22kw-6 |
|
2 |
vibrating screen |
1.8 |
1 |
3kw-4 |
|
3 |
potcher |
35m3 |
2 |
4kw-4 |
|
4 |
Thruster |
700mm |
3 |
11kw-6 |
|
5 |
refiner |
380mm |
1 set |
37kw |
|
6 |
pressure screen |
0.6 m2 |
1 set |
22kw-6 |
|
7 |
sand cleaner |
606 |
1group |
|
|
8 |
pulp pump |
3cun |
2 sets |
3kw-4 |
|
9 |
pulp pump |
4cun |
2 sets |
4kw-4 |
|
10 |
Frequency control cubicle |
|
1 set |
|
3. Paper Making Machine
1. cylinder mould part: φ1500mm×1950mm stainless steel cylinder mould(1pc), pressure mould former (1 set)，φ400mm×1950mm couch roll(1 pc),rubber HSD38°±2
2. Dryer part: φ2500mm×1950mm Dryer ( 1 pc ), φ550mm×1950mm carrier roller( 1 pc ), air-powered pressure device, rubber HSD 90°±2, there is double-layer exhaust bood on the dryer.
3. Winding part:φ800mm×1950mm cooling cylinder (1pc),φ280mm×1950mm fly rubber roll( 1pc ).rubber HSD75°±2. Equipped with the 350 speed reducer(1 set)
4. Drive and control part: adopting AC frequency conversion speed, sectional driving.
4. Boiler:
1T boiler, 1 set
5. Installation:
we will send our engineer to assist factory design, installation and technical training. The buyer must be responsible for the security of seller’s engineer. And the buyer should bear the cost of double way international air tickets, visa, local transportation, lodging and accommodation during this period. And the buyer shall pay USD 2000/•per month.
6. Delivery time: 30 days
