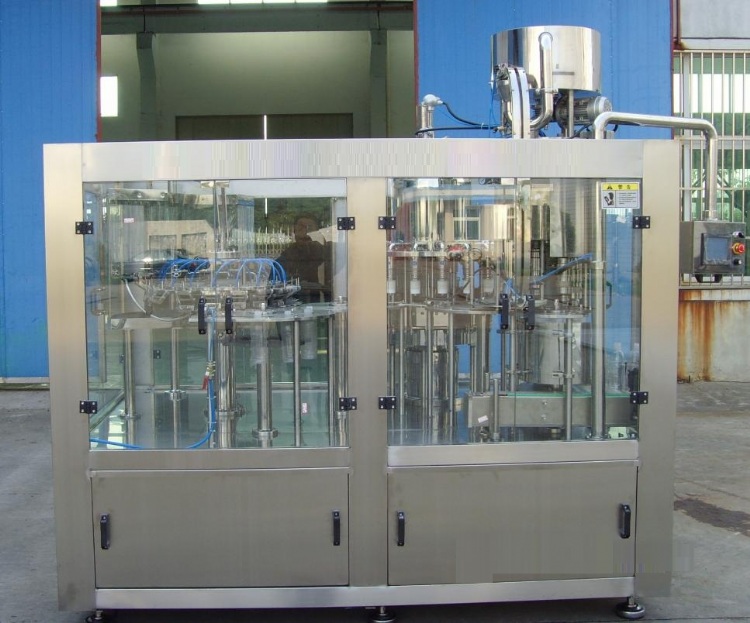

juice/tea filling machine
Model: CGFR18186
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Machines and Equipment for Juice Making Plants
Characteristics
Supply CGFR juice, tea drinks hot filling production line
RCGF series automatic rinsing, filling and capping three in one machine imported from Italy technology, precision manufacturing, aseptic filling can be achieved, increasing the thermostat system, replacing some accessories, can be adapted to heat PET bottles, juice, tea, beverages, etc. hot filling process requirements. The unit advanced technology, small footprint, compact, suitable for a variety of non-carbonated PET bottled drinks (mineral water, purified water, distilled water, juice, tea, beverages, etc.) at room temperature or hot filling, but also for vinegar washing liquid, filling and sealing. 1990s with the international advanced level, is to replace the device into the product the best choice。
Specifications
|
||||||||
Model
|
CGFR
16126 |
CGFR
18186 |
CGFR
24248 |
CGFR
32328 |
CGFR
404010 |
CGFR
484812 |
CGFR
606015 |
CGFR
808020 |
Heads of washing, filling, sealing
|
16-12-6
|
18-18-6
|
24-24-8
|
32-32-8
|
40-40-10
|
48-48-12
|
60-60-15
|
80-80-20
|
Production capacity(bottle/hour)
|
3000-4000
|
5000-7000
|
8000-12000
|
12000-15000
|
16000-18000
|
20000-24000
|
24000-28000
|
36000-40000
|
Suitable bottle height
|
H=170-320
|
Φ=50-100
(330∼1500ml) |
|
|
|
|
|
|
Spraying pressure
|
0.25-0.3
|
|||||||
Total Power
|
1.5+0.37
|
2.2+0.37
|
3+0.45+
0.25 |
5.5 |
7.5
|
11
|
15
|
19
|
Overall dimension(L×W×H) |
2300×
1680× 2650 |
2500×
1760× 2650 |
3100×
2100× 2650 |
3800×
2800× 2650 |
4000×
3300× 3400 |
4850×
3650× 3300 |
6500×
5400× 3500 |
7650×
6400× 2700 |
Weight
|
2600
|
3500
|
4650
|
6800
|
8500
|
1000
|
12500
|
16000
|
