JIANGTAI anchor plate for Self Drilling Hollow Grouted Anchor Bolt
Model: Type R and Type T
Category: Machinery Parts and Components / Machinery Parts and Components / Bolts, Screws, Nuts
Characteristics

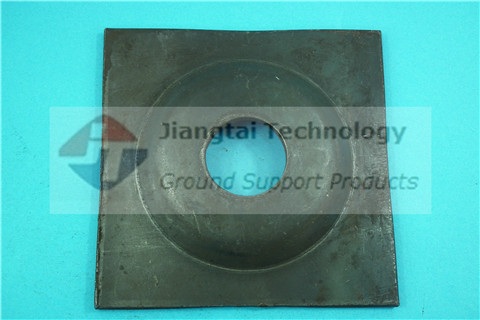

The bearing plates are forged steel plates with a center hole, allowing articulation of seven degrees in all directions.
Specifications
|
Anchor Plate |
Size(mm) |
Thickness (mm) |
Hole Diameter(mm) |
Weight(kg/pcs) |
|
R25N |
150*150 |
8 |
30 |
1.4 |
|
R32L |
200*200 |
10 |
35 |
3.2 |
|
R32N |
10 |
3.2 |
||
|
R32S |
12 |
3.5 |
||
|
R38N/21 |
200*200 |
12 |
41 |
3.7 |
|
R38N/19 |
||||
|
R51L |
200*200 |
30 |
60 |
9.1 |
|
R51N |
250*250 |
40 |
18.9 |
|
|
T76N |
250*250 |
40 |
80 |
19.6 |
|
T76S |
||||
|
Type of Steel |
Q235 |
|||
