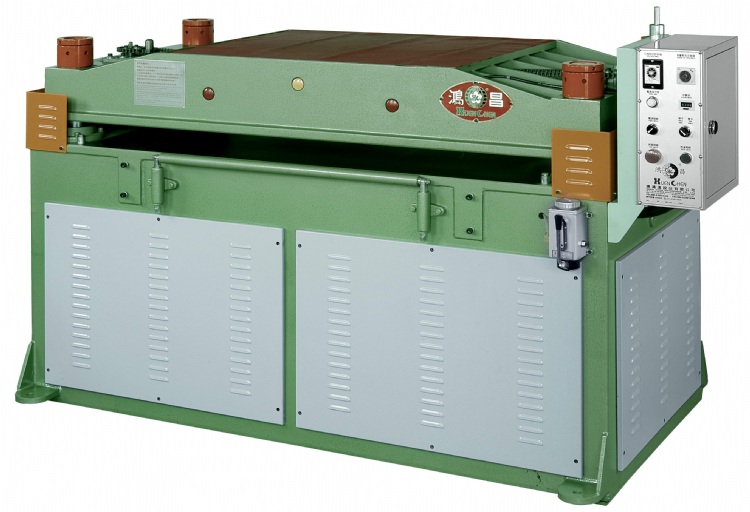

Cutting Machine
Model: HC-450A
Category: Machine Tools / Single & Special Purpose Machines / Cutting Machines for Metalworking
Characteristics
1. All the metal of this machine uses the high quality strong metal that will keep the machine not easy to change shape.
2. The type of the machine is a four-column type cutting machine. It takes good balance and the power supply is stable. Also the machine uses fine adjustment system to get the suitable cutting point. This will make the cutting mold and plate taking a long life time.
3. Easy to operate and low noise. This will improve the working efficiency.
Specifications
Model
|
HC-250
|
HC-300
|
HC-450A
|
HC-1850
|
Pressure
|
25 tons
|
30 tons
|
50 tons
|
65 tons
|
Route
|
70~160 mm
|
70~160 mm
|
70~160 mm
|
70~160 mm
|
Working size
|
475 x 1600 mm
|
610 x 1600 mm
|
915 x 1600 mm
|
1016 x 1850 mm
|
Motor
|
3 HP
|
3 HP
|
5 HP
|
7.5 HP
|
Net weight
|
2030 kgs
|
2550 kgs
|
3760 kgs
|
3900 kgs
|
Gross weight
|
2270 kgs
|
2850 kgs
|
4100 kgs
|
4250 kgs
|
Machine size
|
785x2280x1480mm
|
820x2280x1480mm
|
1180x2380x1550mm
|
1280x2650x1550mm
|
