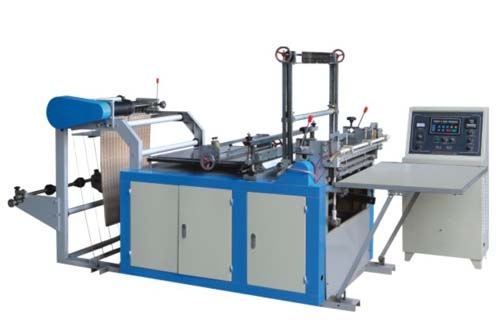

Bottom Sealing and Cutting T-shirt Bag Making Machine
Model: FQ
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
Feature:
This machine is suitable for making T-shirt bags (together with punching machine), Flat-opening bag, disposable medical packing bags for sanitary napkins.(When producing spot cutting-off garbage bags, it can be equipped with rolling machine and spot cutting-off knife dual-purpose device).
Performance and Characteristics:
1. The whole machine adopts microcomputer control and material-pulling by stepping motor
(Servomotor control system can also be selected and equipped)
2. Arbitrary fixed-length, accurate and stable step photoelectric tracking, and stopping automatically when the label is lost photoelectric control feeding.
3. Automatic counting and set able counting alarm
4. Automatic constant temperature makes the sealing the sealing of bag opening firm and smooth
Specifications
Main Technical Parameters:
Model: FQ-500 /FQ-600 /FQ-700 /FQ-800
Max. Bag-making width: 450mm /550mm /650mm /750mm
Max. Cutting length: 1500mm /999mm /999mm /999mm
Production Capacity: 30~180pcs/min
Total Power: 3.3kw /3.5kw /3.7kw /4.3kw
Weight of Machine: 600kg /650kg /700kg /850kg
Overall Dimensions(L×W×H)mm: 3300×940×1600 /3300×1040×1600 /3300×1140×1600 /3300×1240×1600
