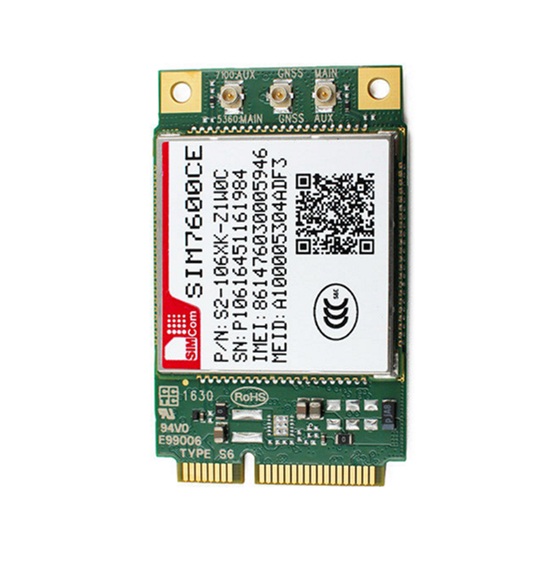

SIMCOM SIM7600CE 4G LTE Cat4 Mini PCIe
Model: SIM7600CE-PCIE
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
The SIM7600CE is Multi-Band LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO and Dual-Band GSM/GPRS/EDGE module solution in a SMT type which supports LTE CAT4up to 150Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,GPIOetc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module providesmuch flexibility and ease of integration for customer's application.
Specifications
General features
Quad-Band TDD-LTE B38/B39/B40/B41
Tri-Band FDD-LTE B1/B3/B8
Dual-Band TD-SCDMA B34/B39
Dual-Band UMTS/HSDPA/HSPA+ B1/B8
CDMA 1X/EVDO BC0
GSM/GPRS/EDGE900/1800 MHz
Control Via AT Commands
Supply voltage range: 3.4V~ 4.2V
Operation temperature: -40Jto +85J
Dimension: 50.80*31*5.35mm
Weight: less than 12g
GNSS gpsOneGen 8B;standalone;assisted,XTRA;
Support for Data transfer
LTE CAT4-Uplink up to 50Mbps, -Downlink up to 150Mbps
TD-SCDMA-Uplink up to 128Kbps, -Downlink up to 384Kbps
TD-HSDPA/HSUPA -Uplink up to 2.2 Mbps, -Downlink up to 2.8 Mbps
HSPA+ -Uplink up to 5.76Mbps, -Downlink up to 42 Mbps
UMTS-Uplink/Downlink up to 384Kbps
EDGE Class-Uplink/Downlink up to 236.8Kbps
GPRS -Uplink/Downlink up to 85.6Kbps
Other features
USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8
USB Driver for Windows CE/Mobile
USB Driver for Linux /Android
RIL supporting for Android/Windows CE/Mobile
Automatic installationfor windows
Linux API SDK
Firmware update via USB
TCP/IP/IPV4/V6 Multi-PDP,MT PDP
FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
DTMF
MBIM to Win8
Source code of the PC manager of the device for reference
Interfaces
USB2.0
UART
SIM card
SPI
I2C
Constant current sink
GPIO
ADC
PCM
SDIO
