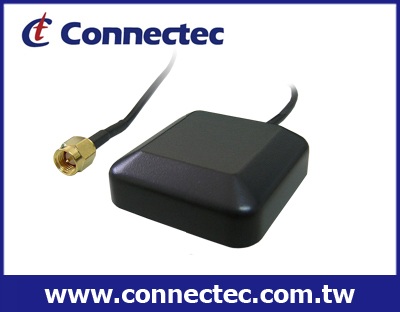

Car GPS Antenna GPS Extenal Antenna SMA/MCX/MMCX 1M/3M/5M
Model: Ct-6180
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
Connector : SMA/MCX/MMCX
Cable Length : 1M/3M/5M
Specifications
This antenna system consists of two functional blocks, the LNA portion and the patch antenna.
1 |
RF Cable |
RG174, diameter 2.7+-0.3mm, Black |
|
Cable Length |
1M /3M / 5M+-5cm |
||
2 |
RF Connector |
SMA 180 deg (M) / SMA 90 deg (M) |
TOTAL SPECIFICATIONS (Through Antenna, LNA, Cable and Connector)
1 |
Frequency Range |
1575.42 +- 1.023MHz |
2 |
Gain |
At 90 deg 30+-4.5 dBi - (cable loss) Note:1 |
mounted on the the 60mm*60m ground plane |
||
3 |
Output Impedance |
50 Ohm |
4 |
VSWR |
2.0 Max |
Note 1: Cable Loss = Max.( –1.2dB / m)
