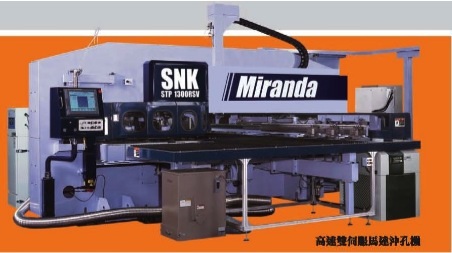

SNK Laser Punching Press
Model: STP-1300RSV
Category: Machine Tools / Metal Forming Machine Tools / High Speed Precision Power Presses
Characteristics
FANUC servo motor system for high speed stable processing
Gratly increased rigidity of the machine frame
SNK-FANUC PC controller
Allowing 1270X2500mm workpiece to be processed at once
Special turret design which allows the accuracy to be maintained in long-term
High-durability
Allowing punching accuracy within ±0.07mm
ATC system, which is based on customers' requirement, can realize long- term unattended operation
Specifications
Ram drive: Servo motor
Press capacity: 30ton
Maximum working area: 1270x2500mm
Punching accuracy: ±0.07mm
Number of stations: 60STA
Workpiece feedrate(X/Y): 100m/80m/min
Hit rate(25mm pitch): 500HPM(X), 330HPM(Y)
Weight: 19ton
