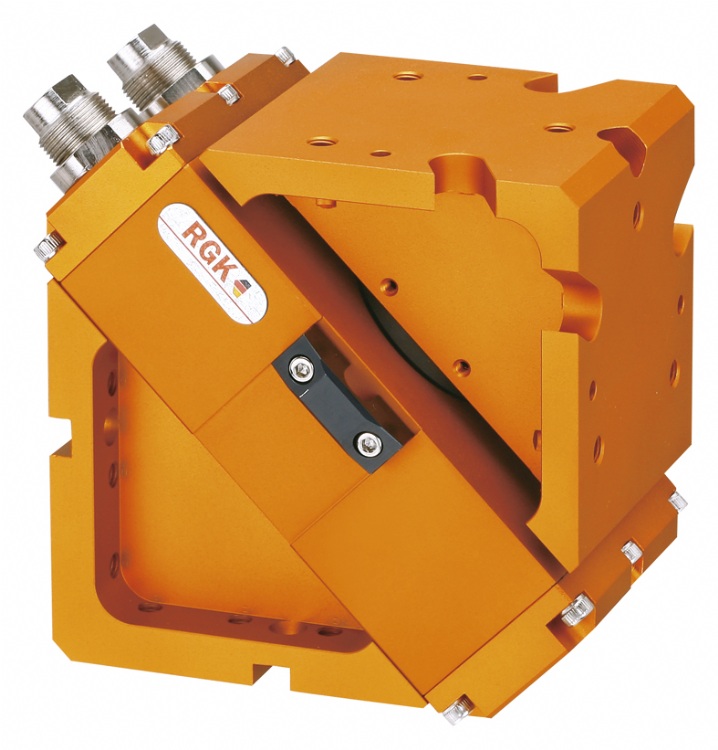

SRH 180° SWIVEL UNITS
Model: SRH25-SRH50
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Industrial Robots & Accessories
Characteristics
●Torque: 3-45Nm
●Types: SRH25-SRH50
●Double-acting cylinder drive
●High flexibility, continuously adjustable rotation angle from 90 ° (-3 °) to 180 ° (3 °)
●Using rack and pinion power transmission to drive
●Hydraulic shock absorbers spiral groove technology, from the smallest wear limit position, smooth power absorption due to the spiral groove
●The series features air passages, with gripper backplane supply, the module allows absolutely no trachea exposed, and provides up to five pneumatic air feed through Central hole allows the sensor cable directly go through Guarantees up to 10 million maintenance-free life cycles
