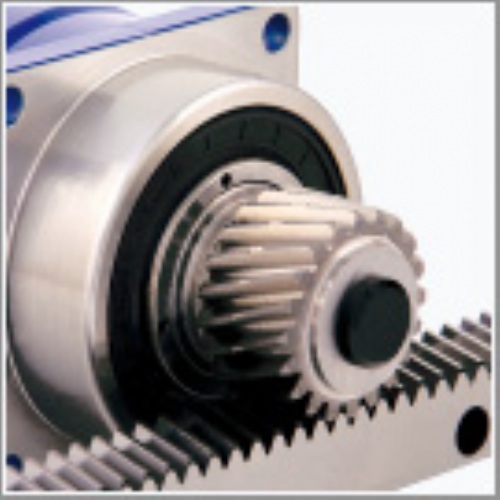

alpha Rack & Pinion
Model: Linear Systems Rack & Pinion
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Speed Reducers
Characteristics
weight and space-saving mounting method through compact gear reducer design with integrated pinion
all mounting surfaces ground to tight tolerance - results in flexible mounting options
optimized smooth and low noise level due to pre-assembled gear pinion units with helix angle (19° 31' 42"; pressure angle 20°) and high concentricity (RTP version < 10 μm)
high reliability because of wear-resistant surface treatment and individually deburred gear teeth
compact, optimized design with low mass moments of inertia results in maximum possible feed dynamics with short acceleration times
maximum precision for lifting axes through positive connection of pinion
maximum operational safety because of high overload capacity
Quality 5 (AGMA-11) through permanent checks according to DIN 9001
ultra-high linear accuracy because of minimum total pitch error (12 μm / 500 mm)
Specifications
module 2:
TP 004, 010, 025
max. accel. torque (T2B)
= 32 to 300 Nm
max. tangential force (F2T)
= 1160 to 8078 N
module 3:
TP 050
max. accel. torque (T2B)
= 500 to 650 Nm
max. tangential force (F2T)
= 7854 to 13174 N
module 2:
SP 060, 075, 100
max. accel. torque (T2B)
= 32 to 250 Nm
max. tangential force (F2T)
= 1675 to 10244 N
module 3:
SP 140
max. accel. torque (T2B)
= 400 to 450 Nm
max. tangential force (F2T)
= 10500 to 14100 N
