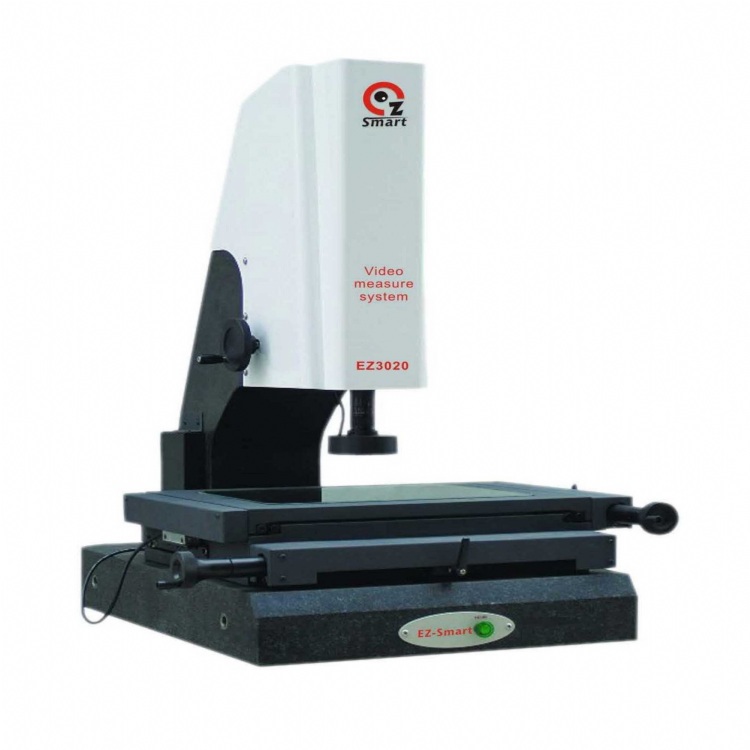

Manual/CNC High Precision Video Measuring Machine Series
Model: Manual/CNC
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
■ granite base and column provide excellentstability and structural rigidity
■Two-tier table structure ensures X, Y level of precision movement and reducesmechanical errors
■Toothless screw achieves backlash frictio n drive
■High-resolution TEO 1/3 color CCD camera and high-definition click zoom lens, ensuring clear and sharp images
■Advanced image processing enhances contrast and fidelity with powerful edge detection to ensure accuracy and repeatability
■High precision linear scale with the resolution of 0.001mm(0.0005mm optional)
■ Programmable 4-division LED surface ring illumination and LED parallel contour illumination
Specifications
-Travel(mm) :300*200,400*300,500*400
-3+L/200 ( L is the measured length, unit: mm )
