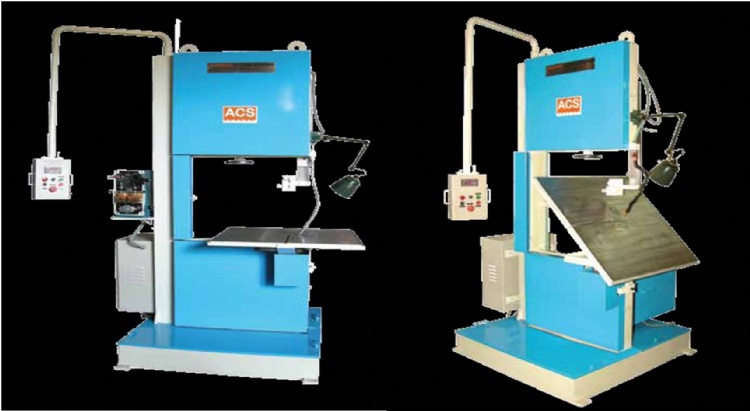

vertical band saw machine
Model: 200V
Category: Machine Tools / Sawing Machines / Band Saws, Vertical Type
Characteristics
1. Massive solid stress relieved torsion free fabricated frame provides durability stiffness and absorbs vibration. Guaranteeing vibration free operation.
2. Large diameter cast iron wheel with flame hardened periphery for reducing abrasive wear of wheel and enhancing blade life.
3. Efficient guiding of blade with heavy duty adjustable dovetail type movable blade guide with tungsten carbide inserts and pre-straightening guide rollers.
4. Coolant arrangement with inbuilt tank.
5. Positive manual blade tensioning
6. Friction type cleaning circular wire brush.
7. Step pulley with V belt
8. Automatic machine switch off in case of blade breakage.
9. Operation instruction manual.
10. One year warranty
Specifications
|
1. |
Throat mm |
200 |
|
2. |
Under guide height mm |
200 |
|
3. |
Blade length mm |
3505x27x0.9 |
|
4. |
Speed range m/min |
20-100 |
|
5. |
Table size mm |
600x600 |
|
6. |
Overall dimensions mm |
L900xW700Xh2100 |
|
7. |
Weight Kg |
400 |
ELECTRICAL
|
1. |
Saw motor HP |
3 |
|
2. |
Coolant motor HP |
0.16 |
|
3. |
Supply |
440 VOLTS / 50Hz / 3PHASE A.C. |
