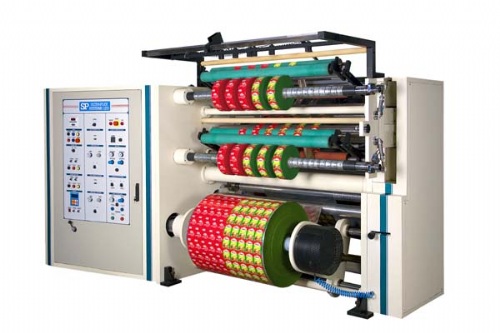

Slitter rewinder- Front loading unwind
Model: DSR FL 400
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Slitting and Rewinding Machines
Characteristics
Distinct advantages-
-High speeds of 400 m/min, compact, ergonomically conceived, operator friendly
with good all round accessibility, requiring minimum operator movement.
-Easy web threading, excellent accessibility to machine components
-Shaftless unwind section.
-Pneumatically operated cutting section.
-Possibility of Tangential or wrapped cutting.
-Unique “S” wrapped, segmented rider roll assembly.
-Pneumatic slide door provides rigid support to rewind shafts.
-Average rewind changeover time of under 3 minutes.
-Differential rewind shafts with Ball locks.
Specifications
DSR FL 400 (Front loading version)- features an unwind Integrated with the main machine and under the Rewind shafts
The DSR FL 400 Slitter Rewinder is extensively used in the Flexible packaging and Converting industry to convert Plain/ Printed/Coated/ Co-extruded and Laminated combinations of base materials such as Paper, Plastic films such as OPP, PET, CPP,PVC, POF and Aluminum foil.
