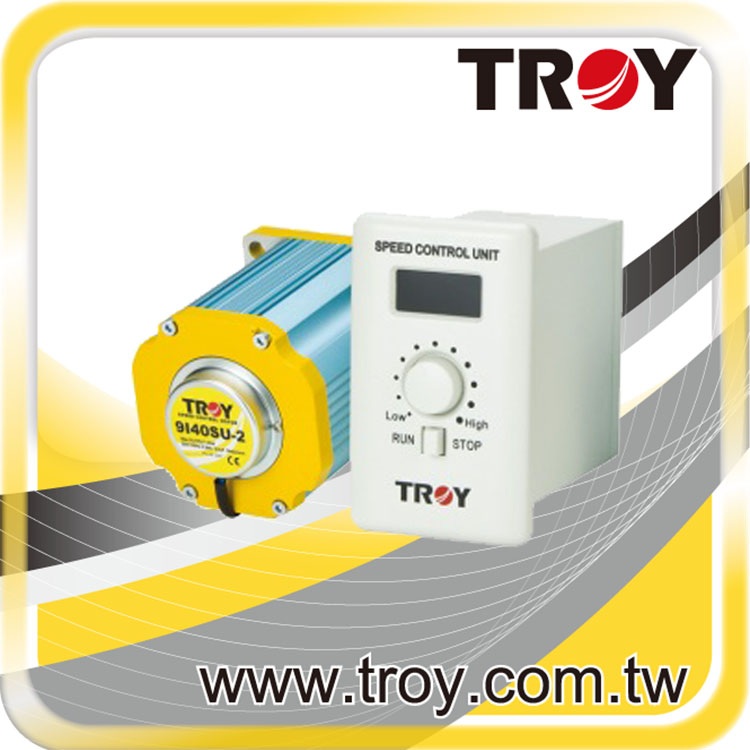

AC Induction Motor
Model: Induction/Reservible/Speed control/Electromagnetic
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
■ Good dissipate heat effection
■ Oilproof/Waterproof/dustproof (IP54)
■ Upgrade structure to double intensity
■ Maximum permissible torque of Gearhead is up to 40Nm
Specifications
■ AC induction motor: continuing rotate at one direction, stop motion continuously, about 2~3 over rotation as stopping
■ AC reversible motor: frequent rotate clockwise and counterclockwise, instantaneous start or stop, stop motion every 30 minute, about 4~6 over rotation as stopping
■ Speed control motor: speed control range: 90-1700r/min(60Hz)/90-1400r/min(50Hz). About 0.5~1 over rotation as stopping, easily control speed, instantaneous brake stop, slow start or stop, electro-gear ratio setting on panel
■ Electromagnetic brake motor: during power outage, there is still torque maintenance. Brake frequency is below 50 times in a minute. About 2~3 over rotation as stopping
■ Torque motor: for tension controlling, stop-motion for continuous/5 minutes, drooping characteristics, often use in Feeding and discharging occasion
