.Three Pole Contactor

Enlarge

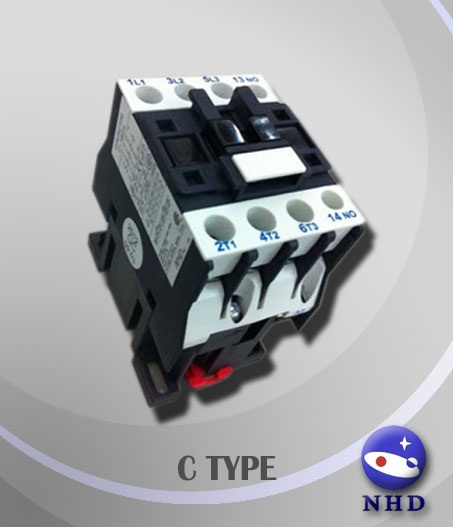

.Three Pole Contactor

Model: .C -series 9A to 110A

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery

Online Inquiry

Characteristics

Our C-series contactors are are sold around the world, the production capacity is about 15k~22k pcs per month. The quality is quite stable and good, furthermore, this is the first contactor product that gained the TUV certificate and declared CE approval, besides, C-09~18D are approved for UL, and C-09~35D are approved for CUL as well.

Specifications

	Instantaneous auxiliary contacts		Rated Insulation voltage	AC1 duty θ≦40℃		Rated operational power in AC-3 3Phase			Rated operational power in AC-3 1Phase			Weight
						220V	380V	440V	575V	120V	230V
	N/O	N/C	Ui	ITH	IE	KW HP	KW HP	KW HP	KW HP	KW HP	KW HP	(KG)
C-06D10	1	-	1000V	16A	9A	2.2 3	3.7 5	3.7 5	3.7 5	0.2 1/3	1.1 1.5	0.177
C-06D01	-	1
C-09D10	1	-	1000V	20A	9A	2.2 3	3.7 5	3.7 5	3.7 5	0.37 0.5	0.37 0.5	0.350
C-09D01	-	1
C-11D10	1	-	1000V	25A	12A	3 4	5.5 7.5	5.5 7.5	5.5 7.5	0.55 0.75	0.55 0.75	0.350
C-11D01	-	1
C-12D10	1	-	1000V	25A	16A	4 5.5	7.5 10	7.5 10	7.5 10	0.75 1	0.75 1	0.350
C-12D01	-	1
C-18D10	1	-	1000V	32A	22A	5.5 7.5	11 15	11 15	11 15	1.5 2	3.7 5	0.380
C-18D01	-	1
C-25D10	1	-	1000V	40A	32A	7.5 10	15 20	15 20	15 20	2.2 3	4 5.5	0.525
C-25D01	-	1
C-35D10	1	-	1000V	50A	42A	11 15	19 25	19 25	19 25	3 4	5.5 7.5	0.550
C-35D01	-	1
C-45D11	1	1	1000V	60A	55A	15 20	30 40	30 40	30 40			1.100
C-55D11	1	1	1000V	80A	65A	19 25	33 45	33 45	33 45			1.100
C-65D11	1	1	1000V	90A	80A	22 30	37 50	37 50	37 50			1.100
C-80D11	1	1	1000V	125A	105A	25 35	45 60	55 75	55 75			1.430
C-100D11	1	1	1000V	130A	110A	30 40	55 75	55 75	60 80			1.430
