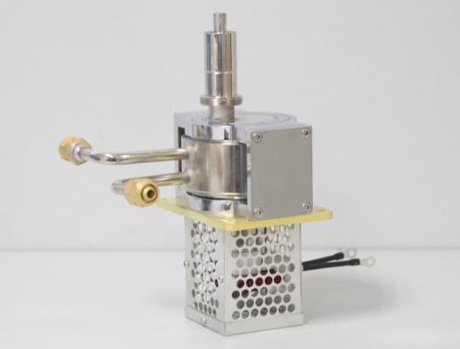

CK-2153 Model Continuous Wave Magnetron
Model: CK-2153 Model Continuous Wave Magnetron
Category: Machine Tools / Single & Special Purpose Machines / Other Metal Cutting Machines
Characteristics
Frequency range (f) 915±10MHz
Filament voltage when preheating 4.7±0.3V
Filament current when preheating 20A
Filament current when working 22A
Anodic voltage 4.0∼4.5kV
Anodic current 400mA
Output power ≥920W
Load VSWR ≤1.2
Cooling mode water cooling
Energy transport mode BJ—9 waveguide output
Efficiency ≥50% http://www.microwave-world.com
