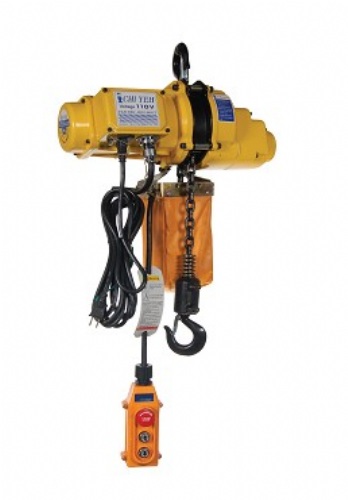

mini chain hoist
Model: ch-500
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
●The body is shortest distance for chain electric.
●The special clutch can be cutted when it load over
weight.
● The chain is an alloy steel, it is imported,it is
strongest and endureing, the safe coefficient is
over 6.
● The strong brake is accurate and safe, the
structure of subject is simple, it is easy to
assemble and take down, the rate of breakdown is
lowest
● Hanger can be revolved by 360 degree, and has
the safe botton of avoid to dropping
● Heavy duty IP65 waterproof switch with emergency stop K613A as an option
● Come Chiyeh with 4.5 m power lead and industry plug
● Come Chiyeh with 6 m pendant control
Specifications
Lifting Capacity (top layer) kg : 500
Lifting Speed 6 M
Motor Output 110V kw x A : 1.4 x 10
Motor Output 220-240V kw x A : 1.4 x 6
Motor Type : series wound
Brake : mechanical ratchet
Lifting Height m : 3
Chain : 6.3 mm
Percentage Duty Cycle : 30% ED
