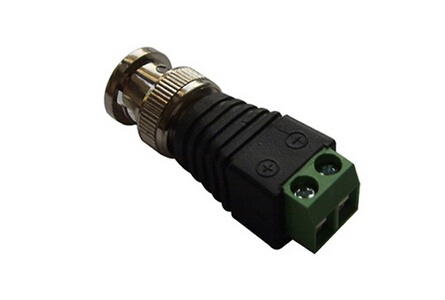

bnc to screw terminal BNC Male Connector To Screws Terminal (CT120)
Model: bnc to screw terminal BNC Male Connector To Screws
Category: Plastic and Rubber Industry / Other Machinery / Colorants, Pigments and Dyes
Characteristics
bnc to screw terminal BNC Male Connector To Screws Terminal (CT120)
Specifications
BNC Male Connector to Screws Terminal (CT120)
Description:
BNC Male Connector to Terminal Screws
Features:
100% brand new and high quality product
Great for short distance connection
Simply & Professional appearance for cabling
Easier for CCTV camera installation, save time and money
Easy to use, No electrical tap, No splicing, no crimping, only a small screw driver
Specifications:
Connectors: Terminal block, Male BNC
Material: Zinc Alloy + Plastic
Temperature range: - 40~ +155
Insulation resistance: ≥5000MΩ
Character impedance: BNC-50Ω; Terminal block-100Ω
Frequency range: 0~3GHZ
Disengage force: ≥0.6N
Contact resistance: center conductor≤1.5mΩ; outer conductor≤1mΩ
Durability: ≥ 500
Size: 42.2*14*14mm
Net Weight: 12g/piece
http://www.chinaskycctv.com
