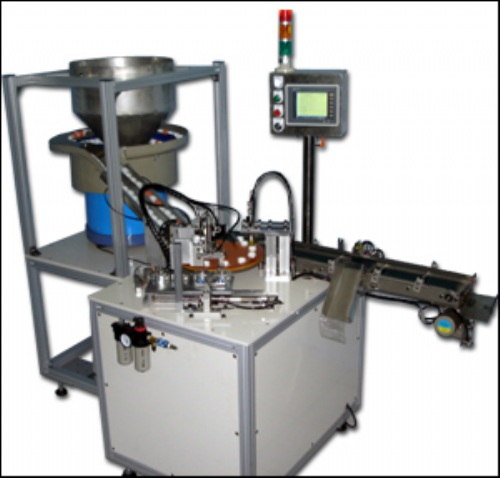

Liner insert cap assembly machine
Model: CPTL-400
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Cap-Sealing Machine
Characteristics
1. This machine is special design for 1mm thickness of thich liner, the liner
have to flush the shape in anticipation and to load the magazine type.
2. Cap direction elected by vibratory disk, enter to plate then insert
(implant) liner slice into the cap.
3. Finished product will check automatically, when cap lack of liner will
pick up automatically.
4. There are two type organizations available with glue and without glue.
5. Produce speed：50~70pieces per minute.
6. Replacement different size of work thing size must replace the fixture.
Specifications
Oil Cap/Drug Cap
Cap outer diameter 25~55mm
Liner thickness 0.5~1mm
Heigth of Cap 15~30mm
