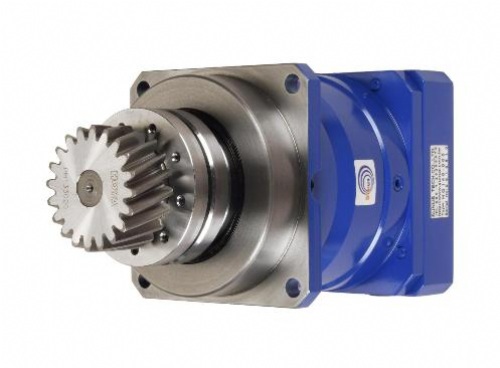

Precision planetary gear reducer for servo-motor HC-SERIES
Model: HC-SERIES
Category: Machinery Parts and Components / Machinery Parts and Components / Gear Motors
Characteristics
Operating smooth, Low noise
Hardened and ground rack and pinion connect with helix angle system
Easy installation, space and weight saving
Pinion and output shaft of reducer are connected with high stiffness coupling
Affording huge radial and axial load
Using high quality tapered roller bearing to strengthen the radial and axial load
Rack and pinion can be adjusted to best precision
With eccentric plate to adjust the position of pinion
High dynamics
For an excellent design, high accuracy, and low moments of inertia
High positioning accuracy
The combinative precision of pinion and reducer within 0.015mm
Perfect for lineally positioning
Adopting Swiss rack and pinion; cumulative pitch error 0.03/1000mm
Long service life
Due to these characteristics as below:
1. Well design and structure
2. Using high quality taper roller
bearing
3. High quality German seal
4. Hardened and ground gear
5. Best-chosen synthetic oil
Specifications
HC-SERIES：HG100/HG120/HG140/HG160/HG180
Ratios-4/5/7/10/16/20/28/40/50/70/100
