Two Flutes Solid Carbide Up and Down Cut Compression Spiral Bits for Woodworking

Enlarge

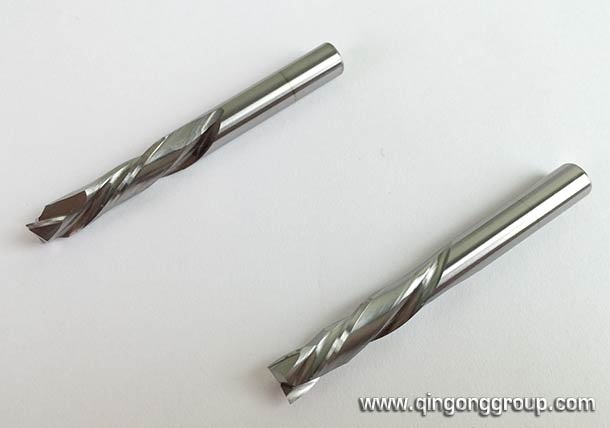

Two Flutes Solid Carbide Up and Down Cut Compression Spiral Bits for Woodworking

Model: Compression bits

Category: Woodworking Machinery Industry / Tools & Its Grider / Drill Bit

Online Inquiry

Characteristics

The part of the bit closest to the tip is upcut and the other end is downcut. That is why it’s called a compression bit. It compresses the chips into the center of the bit.

Spiral router bits leave a clean edge on the top or bottom surface, depending on the direction of the cut. So we have up cut spiral router bits and down cut spiral router bits.

Specifications

Two Flutes Solid Carbide Up and Down Cut Compression Spiral Bits for Woodworking

The part of the bit closest to the tip is upcut and the other end is downcut. That is why it’s called a compression bit. It compresses the chips into the center of the bit.

Spiral router bits leave a clean edge on the top or bottom surface, depending on the direction of the cut. So we have up cut spiral router bits and down cut spiral router bits.

Compression router bits are an excellent choice for woodworkers who must have a clean top and bottom surface, as they have a Up-Cut design on the tip of the bit and a Down-Cut design ground into the shank.

Designed to provide a smoother finished cut and router wood and wood composites where upward/ downward chip removal, long life and quality finish are desired. It’s great for cutting openings in wood.

This makes it especially great for plywood, laminates and MDF when you need both the top and bottom edges clean. You just have to make sure that the piece of wood you are cutting is thick enough so that both ends of the bit have room to work. Both the top and bottom are cut perfectly clean.

Choose from our large variety of solid carbide spiral & compression router bits below. They are widely used on CNC and other automatic routers as well as hand-held router and table-mounted portable routers.

Compression cutter bits size:

CED (mm)	CEL (mm)	SHK (mm)	OVL (mm)
3.175	12	3.175	40
4	17	4	50
5	17	5	50
6	22	6	55
6	25	6	60
8	35	8	80
10	35	10	80
10	45	10	90
12.7	45	12.7	100
12.7	55	12.7	110
16	55	16	130
16	75	16	150
20	45	20	120
20	75	20	150

Every woodworker knows - the right router bit makes all the difference in creating great work. Choose the good bits makes the work become easy.

If any interests in our cnc cutter bits, Welcome your inquiries.

Payment can be made by Western Union, Paypal, T/T.
